KLI-000-095-08 - Datasheet

MBA

Category Information

Thread Repair - Inserts - Keylocking

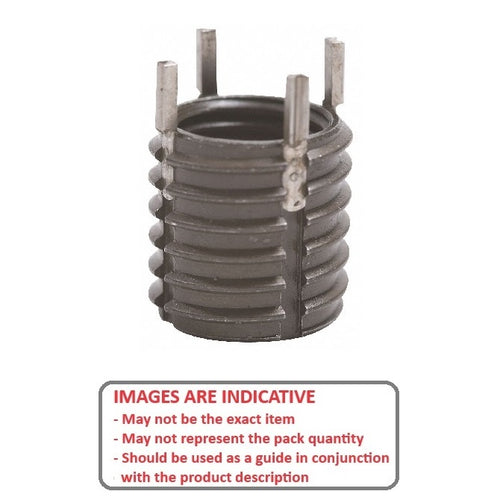

Keylocking Inserts Thread Repair. Steel or 303 Stainless Steel as indicated in the tables. Also known as keenserts.

  • Steel or 303 Stainless Steel as indicated in the tables
  • Maximum strength and reliability.
  • Positive mechanical lock against rotation:.

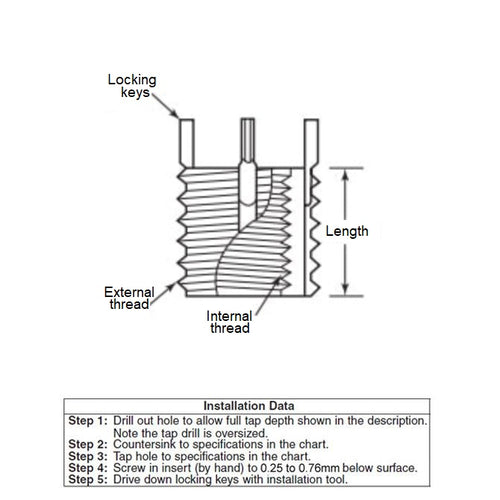

  • The insert kees are driven down into the tapped threads of the parent material during installation to securely lock the insert against rotation.
  • Inserts with internal thread lock are designed to securely lock a bolt when it is entered into the insert only a few turns.

Product Data

  • Internal Thread : SOLID - Tap your own internal thread
  • External Thread 3/8-16 UNC (9.53mm)
  • Length 7.874 mm
    (Equiv. 0.31 in.)
  • Tap Drill Diameter 6.90 mm
  • Countersink Diameter 8.128 mm
  • Locking Keys 4
  • Tapped Hole Depth 9.398 mm
  • Removal Drill Size 5.556 mm
  • Removal Drill Depth 3.175 mm
  • Installation Tool KLI-64802RS
  • Material Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • KLI66002
  • KLI-66002
