SS048F-0223-CZ - Datasheet

MBA

Product Data

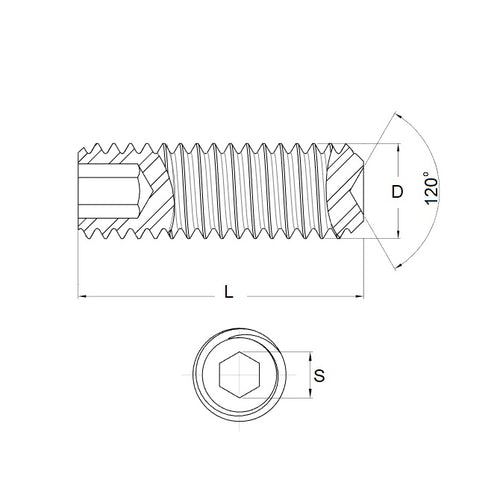

• Thread Size : 10-32 UNF (4.76mm)
• Thread Length (L) 22.3 mm
  (Equiv. 0.878 in.)

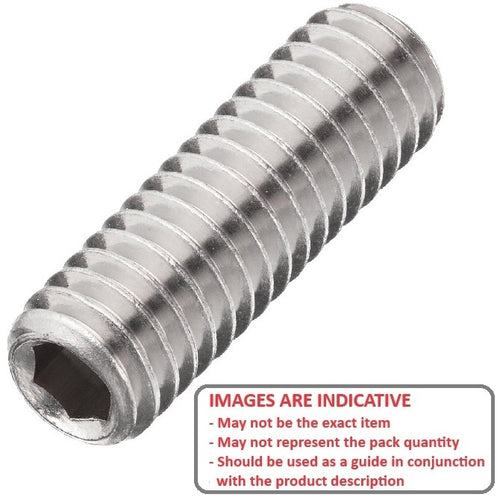

• Type Standard Cup Point
• Pitch 0.794 mm
• Threads Per Inch 32 TPI
• Finish Zinc Plated
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best 10-32FX7-8ASCZ
• 1032FX78ASCZ
