SS064C-0222-AS - Datasheet

MBA

Product Data

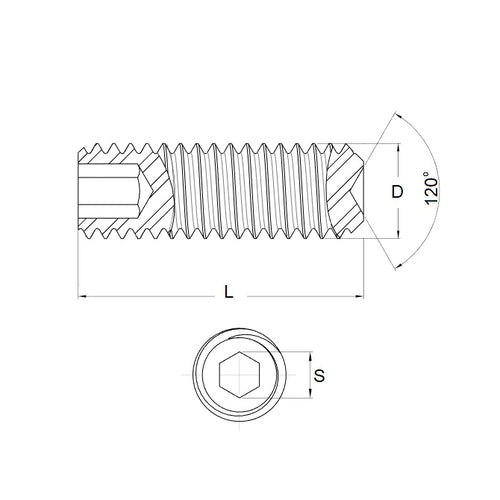

• Thread Size : 1/4-20 UNC (6.35mm)
• Thread Length (L) 22.2 mm
  (Equiv. 0.874 in.)

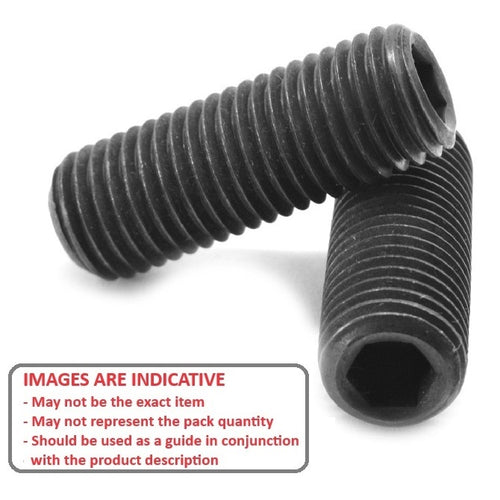

• Type Standard Cup Point
• Hex Key Size 3.18 mm (1/8)
• Pitch 1.270 mm
• Threads Per Inch 20 TPI
• Finish Black Oxide
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
