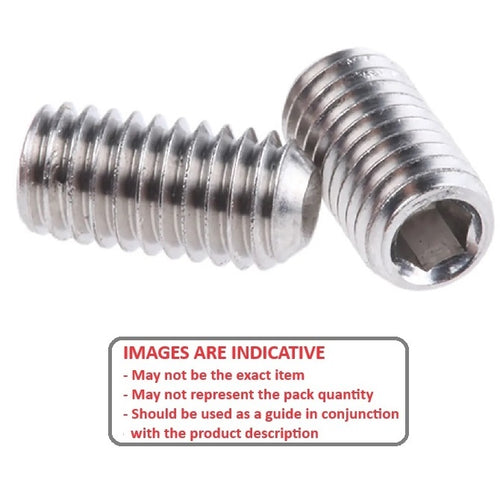

SS200M-0500-S6 - Datasheet

MBA

Product Data

• Thread Size : M20 (20x2.5mm)

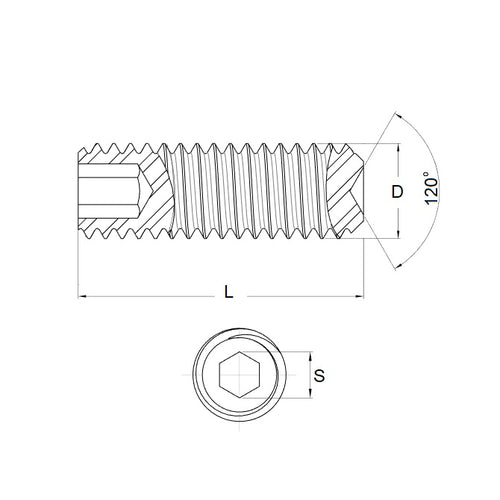

• Thread Length (L) 50.0 mm
  (Equiv. 1.969 in.)
• Type Standard Cup Point
• Hex Key Size 10.00 mm
• Pitch 2.500 mm
• Threads Per Inch 10.16 TPI
• Material Stainless Steel 316 (Similar to A4, 18-10)

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF

• Assortment Kits


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Brighton Best M20x50SSC6
