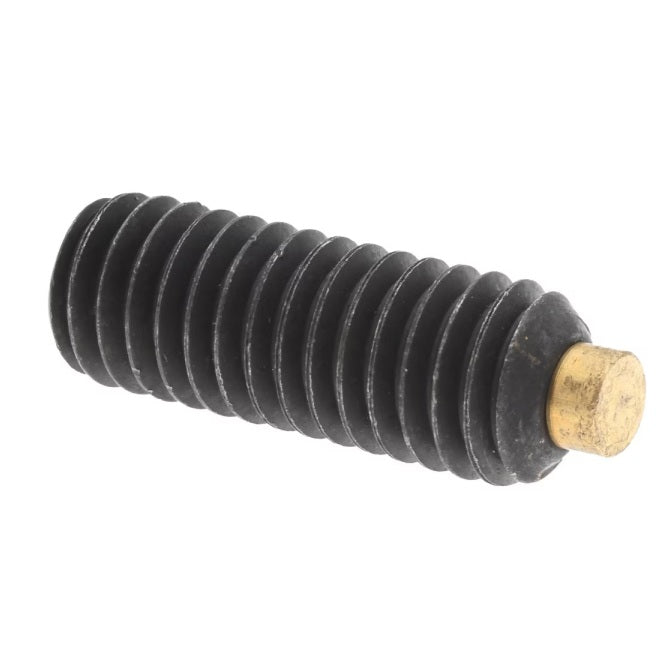

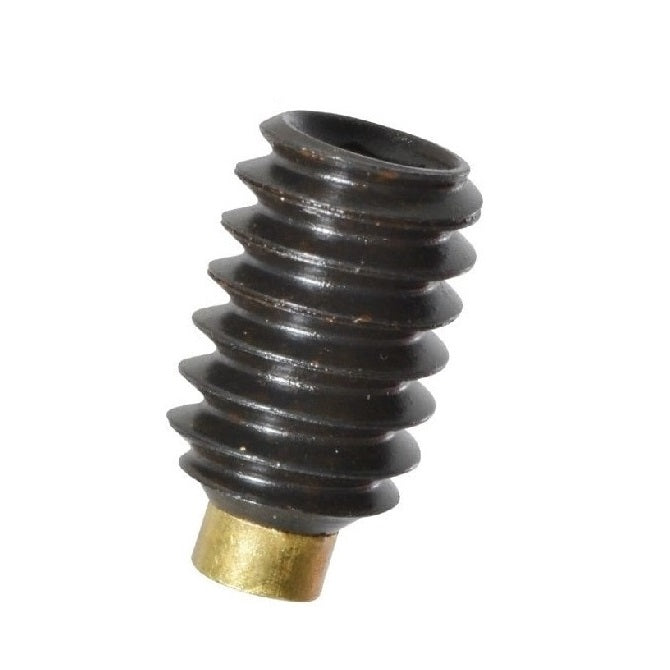

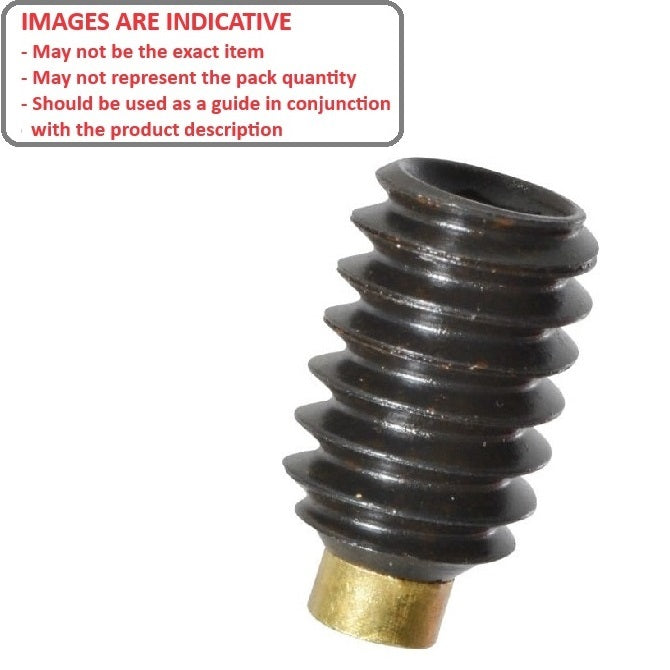

SS120M-0500-AS-BT - Datasheet

MBA

Product Data

• Thread Size : M12 (12x1.75mm)
• Thread Length (L) 50.0 mm
  (Equiv. 1.969 in.)
• Type Brass Tipped
• Overall Length (L + L1) 52.0 mm
• Tip Diameter (d) 10.0 mm
• Tip Length (L1) 2.0
• Hex Key Size 6.00 mm
• Pitch 1.750 mm
• Threads Per Inch 14.51 TPI
• Finish Black Oxide
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC
