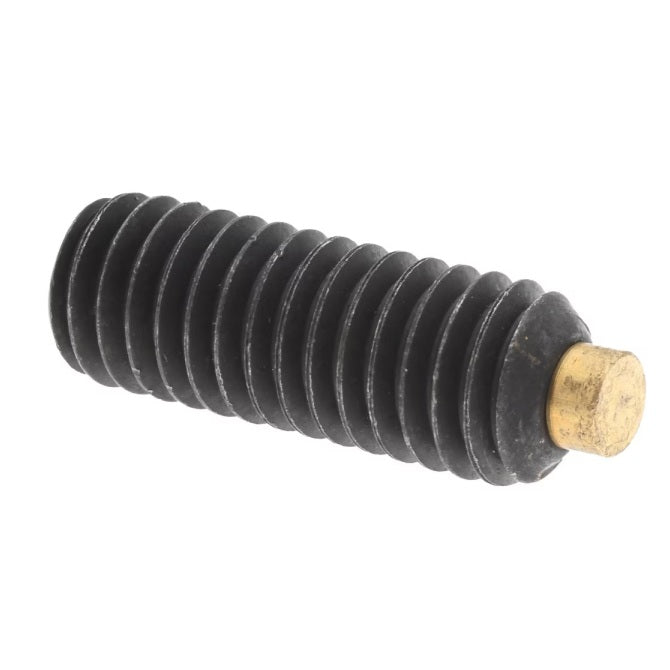

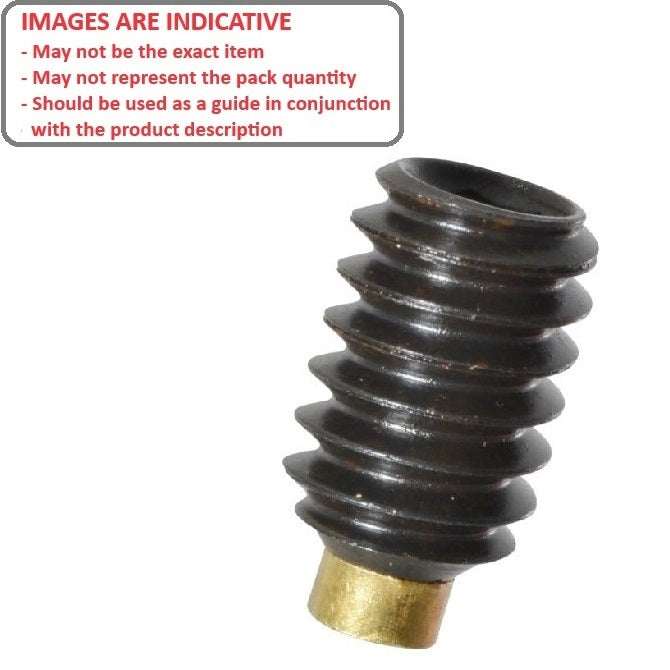

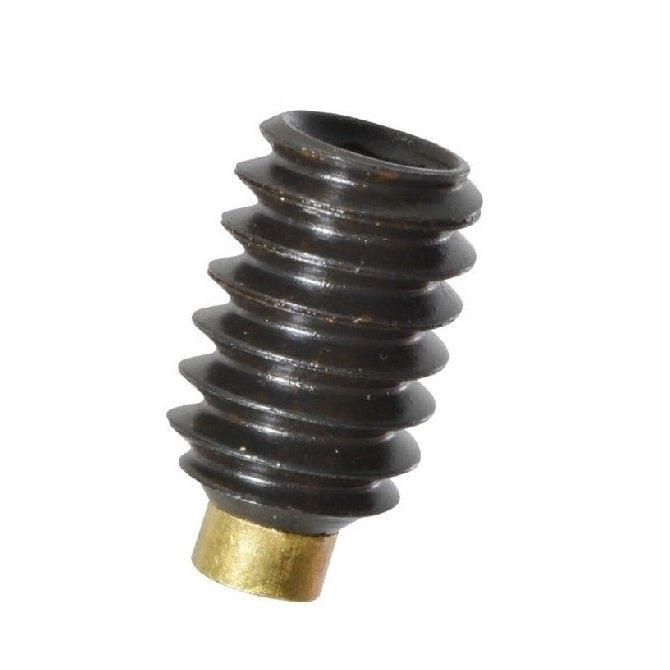

SS100M-0400-AS-BT - Datasheet

MBA

Product Data

• Thread Size : M10 (10x1.5mm)
• Thread Length (L) 40.0 mm
  (Equiv. 1.575 in.)
• Type Brass Tipped
• Overall Length (L + L1) 42.0 mm
• Tip Diameter (d) 8.0 mm
• Tip Length (L1) 2.0
• Hex Key Size 5.00 mm
• Pitch 1.500 mm
• Threads Per Inch 16.93 TPI
• Finish Black Oxide
• Material Carbon Steel

Product Compliance and Data

• RoHs Statement
• REACH Statement
• CoC

Additional Resources

• Socket Set Screws Master PDF


• Measuring Small Parts
• Metalworking Resource Guide

• Screws & Nuts Catalogue
• Shoulder Screws Catalogue
• Socket Set (Grub) Screws Catalogue
• Thumb Screws & Thumb Nuts Catalogue
• Thread Size Chart - Combined Imperial & Metric

Cross References

• Misumi SBCP10-40
• SBCP1040
• GN.13845
