SS060M-0250-AS-AT - Datasheet

MBA

Category Information

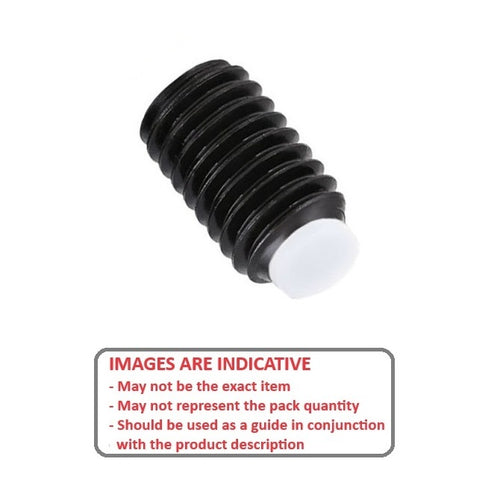

Socket Set Screws - Acetal Tipped - Alloy Steel

Alloy Steel Acetal Tipped Socket Set Screws. Acetal tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.

  • Socket driven grub screws that uses a non-metallic tip made of acetal to prevent damage to the shaft it secures.
  • Acetal tip compresses into the threads of the set screw and conforms to the surface of the shaft, providing a self-locking mechanism and preventing marring or indentation, unlike traditional metal-tipped set screws.

Product Data

  • Thread Size : M6 (6x1mm)
  • Thread Length (L) 25.0 mm
    (Equiv. 0.984 in.)
  • Type Acetal Tipped
  • Overall Length (L + L1) 26.3 mm
  • Tip Diameter (d) 3.5 mm
  • Tip Length (L1) 1.3
  • Hex Key Size 3.00 mm
  • Pitch 1.000 mm
  • Threads Per Inch 25.4 TPI
  • Finish Black Oxide
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi SBPP6-25
  • GN.13725
  • SBPP625
