SS080M-0200-AS-AT - Datasheet

MBA

Category Information

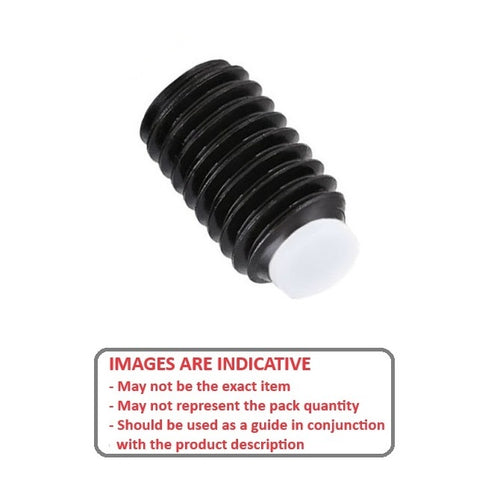

Socket Set Screws - Acetal Tipped - Alloy Steel

Alloy Steel Acetal Tipped Socket Set Screws. Acetal tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.

  • Socket driven grub screws that uses a non-metallic tip made of acetal to prevent damage to the shaft it secures.
  • Acetal tip compresses into the threads of the set screw and conforms to the surface of the shaft, providing a self-locking mechanism and preventing marring or indentation, unlike traditional metal-tipped set screws.

Product Data

  • Thread Size : M8 (8x1.25mm)
  • Thread Length (L) 20.0 mm
    (Equiv. 0.787 in.)
  • Type Acetal Tipped
  • Overall Length (L + L1) 21.6 mm
  • Tip Diameter (d) 5.0 mm
  • Tip Length (L1) 1.6
  • Hex Key Size 4.00 mm
  • Pitch 1.250 mm
  • Threads Per Inch 20.32 TPI
  • Finish Black Oxide
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi SBPP8-20
  • GN.13733
  • SBPP820
