SS120M-1000-AS-AT - Datasheet

MBA

Category Information

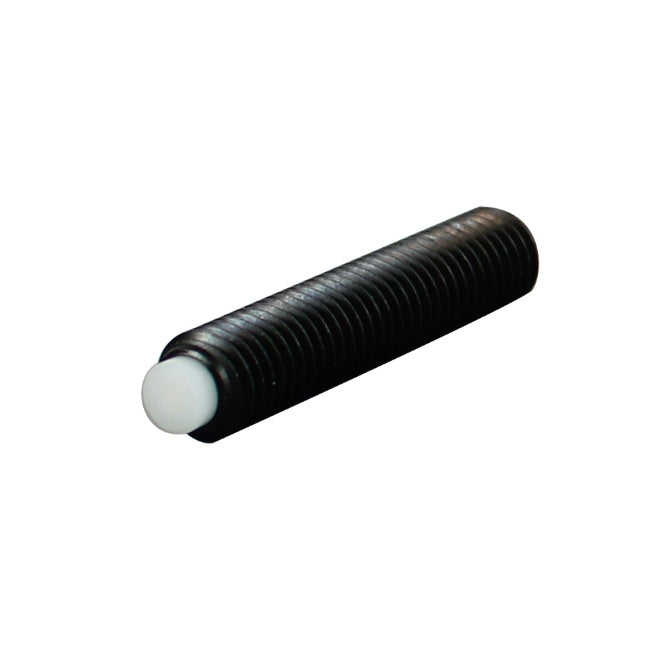

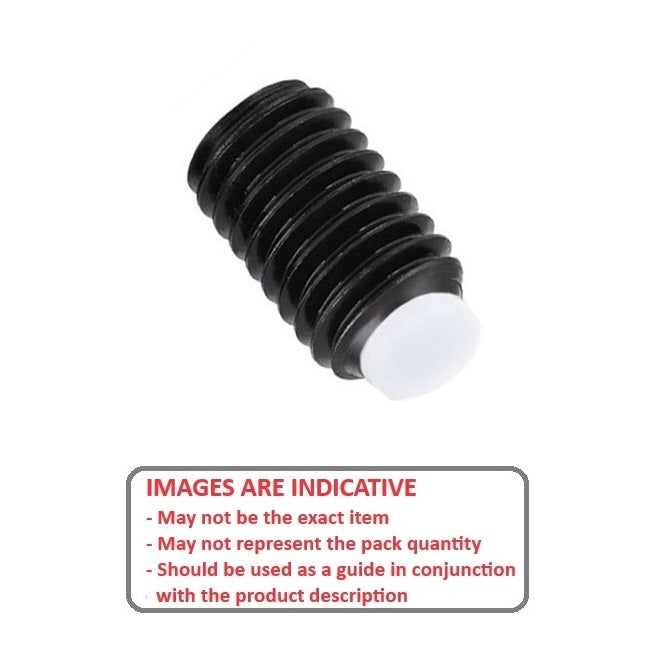

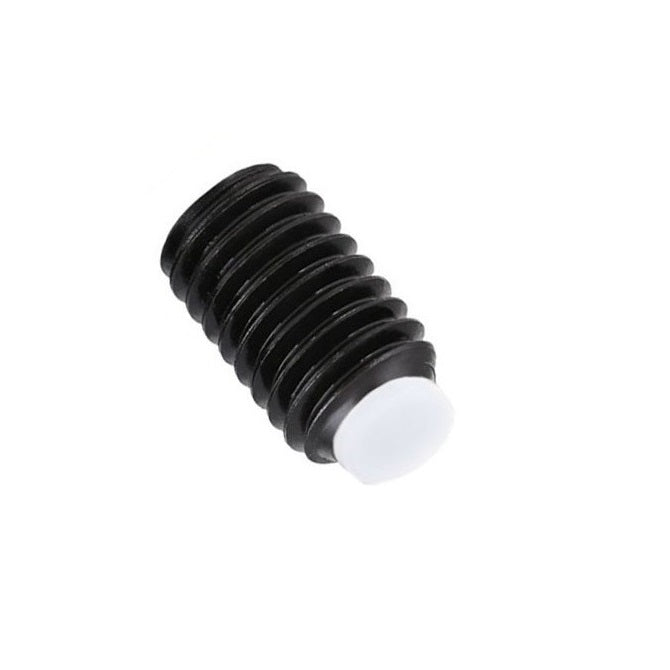

Socket Set Screws - Acetal Tipped - Alloy Steel

Alloy Steel Acetal Tipped Socket Set Screws. Acetal tipped grub screws. Soft tip compresses into threads to become self locking. Helps to prevent shaft damage.

  • Socket driven grub screws that uses a non-metallic tip made of acetal to prevent damage to the shaft it secures.
  • Acetal tip compresses into the threads of the set screw and conforms to the surface of the shaft, providing a self-locking mechanism and preventing marring or indentation, unlike traditional metal-tipped set screws.

Product Data

  • Thread Size : M12 (12x1.75mm)
  • Thread Length (L) 100.0 mm
    (Equiv. 3.937 in.)
  • Type Acetal Tipped
  • Overall Length (L + L1) 102.1 mm
  • Tip Diameter (d) 8.0 mm
  • Tip Length (L1) 2.1
  • Hex Key Size 6.00 mm
  • Pitch 1.750 mm
  • Threads Per Inch 14.51 TPI
  • Finish Black Oxide
  • Material Carbon Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi SBPP12-100
  • GN.13758
  • SBPP12100
