WRI-0520-LS-N - Datasheet
MBA
Category Information

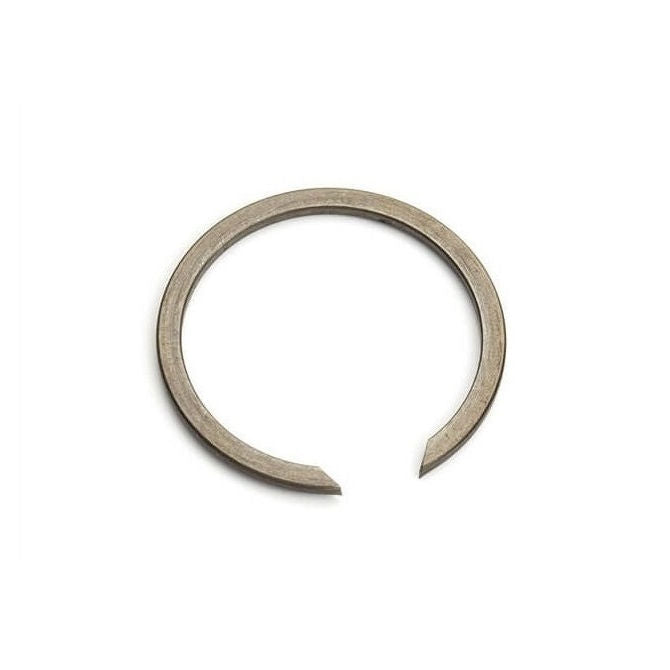

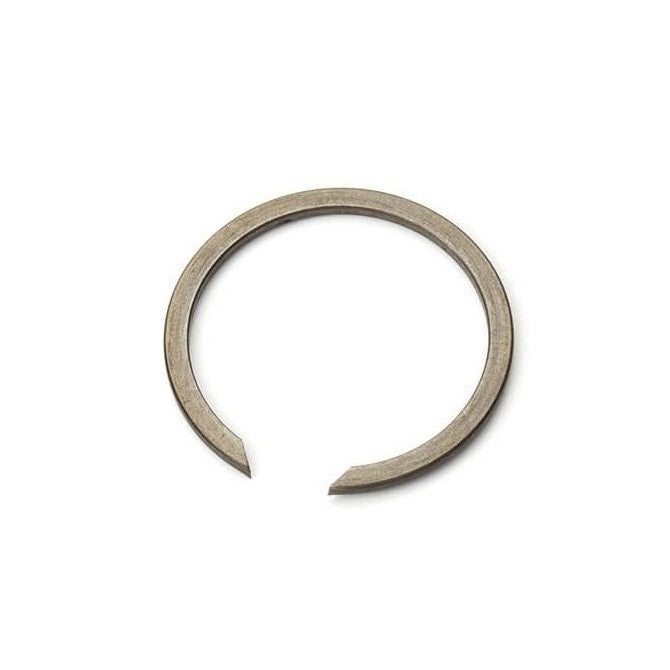

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data
- Housing Bore (B)
:
51.99
mm
(Equiv. 2.047 in.) - Clip Thickness (T)
1.98
mm
+/- 0.05
(Equiv. 0.078 in.) - Groove Dia. (Dg)
55.14
mm
+/- 0.15
(Equiv. 2.171 in.) - Approx. Loose Circlip OD (Dr) 55.91 mm + 1.80 / - 0.00
- Section (Rd) 4.34 mm +/- 0.13
- Groove Width (W) 2.18 mm
- Approx. Loose Clip ID 47.23
- Info Notched
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor UHO-204
- WRI0520SRN
- UHO204
