WRI-0524-LS-O - Datasheet

MBA

Category Information

Retaining Rings - Internal - Snap Rings - Basic Carbon Steel

Basic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.

  • An expanded range may be available on special order. Please enquire.
  • Applications include gear systems, securing needle bearings and to act as spacers.
  • Used on the inside bore diameter of a housing or similar

Product Data

  • Housing Bore (B) : 52.38 mm
    (Equiv. 2.062 in.)
  • Clip Thickness (T) 1.07 mm +/- 0.06
    (Equiv. 0.042 in.)
  • Groove Dia. (Dg) 54.66 mm +/- 0.15
    (Equiv. 2.152 in.)
  • Approx. Loose Circlip OD (Dr) 55.30 mm + 1.58 / - 0.00
  • Section (Rd) 3.96 mm +/- 0.13
  • Groove Width (W) 1.17 mm
  • Approx. Loose Clip ID 47.38
  • Info Special Open Style
  • Section Profile Rectangular with Square Edge
  • Material Carbon Spring Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

Cross References

  • Eaton ND-206
  • NoCor ND-206
  • WRI0524SRO
  • ND206
View full details

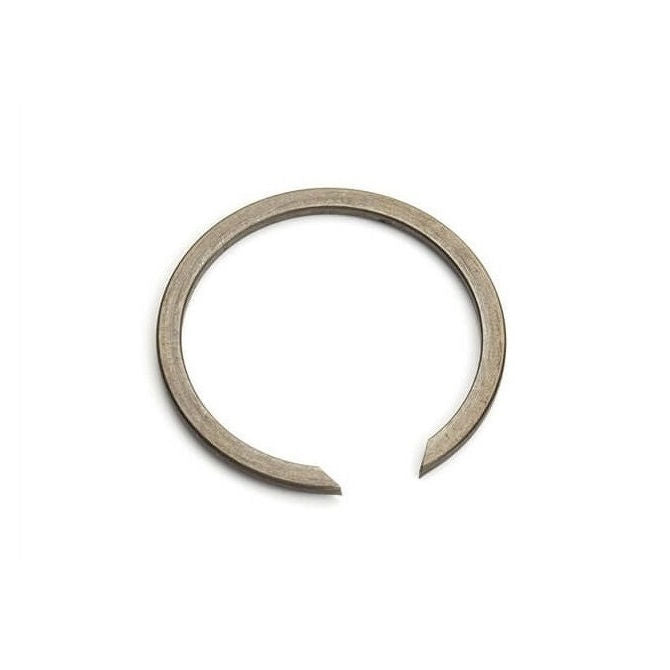

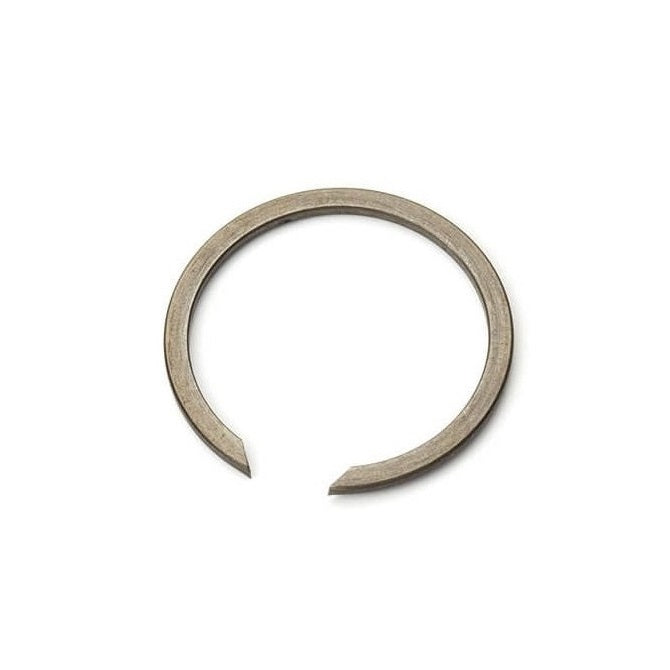

WRI-0524-LS-ODiagramWRI-0524-LS-OImage
