Category Information

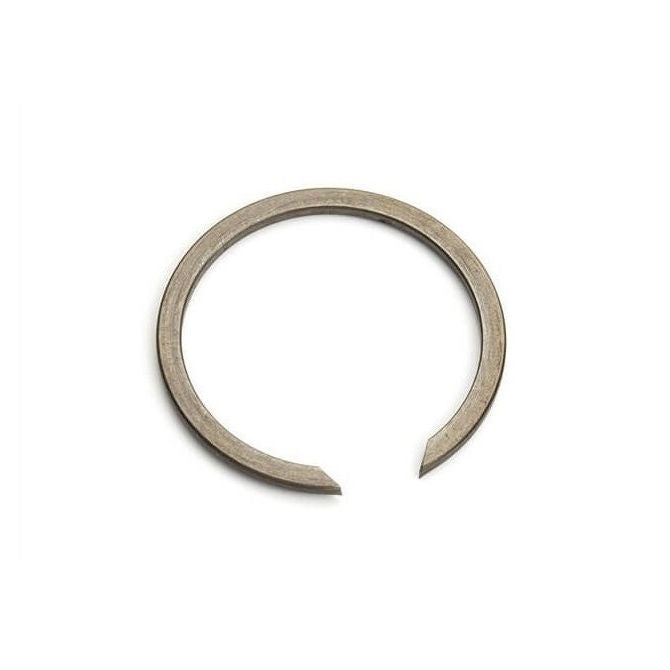

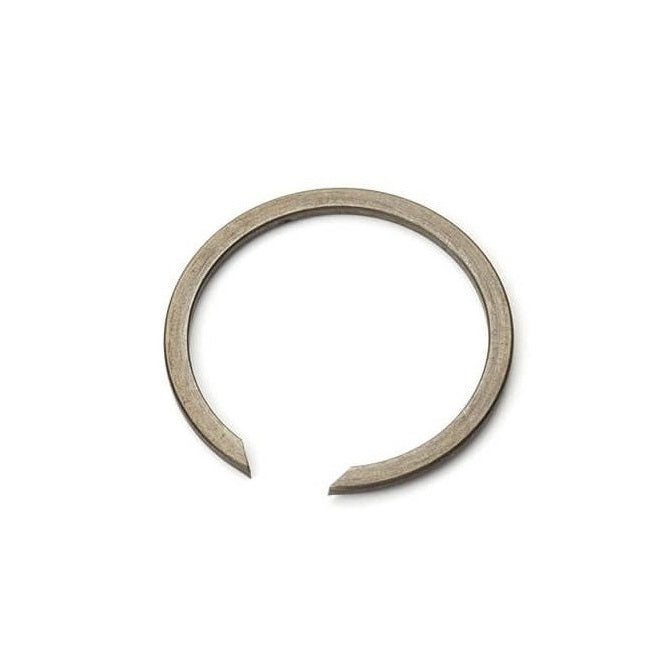

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data
- Housing Bore (B)
:
49.99
mm
(Equiv. 1.968 in.) - Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.) - Groove Dia. (Dg)
52.53
mm
+/- 0.13
(Equiv. 2.068 in.) - Approx. Loose Circlip OD (Dr) 53.29 mm + 1.20 / - 0.00
- Section (Rd) 3.96 mm +/- 0.13
- Groove Width (W) 1.73 mm
- Approx. Loose Clip ID 45.37
- Info Special Open Style
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton NAN-196
- NoCor UHB-196
- Rotorclip UHB-196
- WRI0500SRO
- UHB196
- NAN196
