WRI-0413-LS-HO - Datasheet
MBA
Category Information

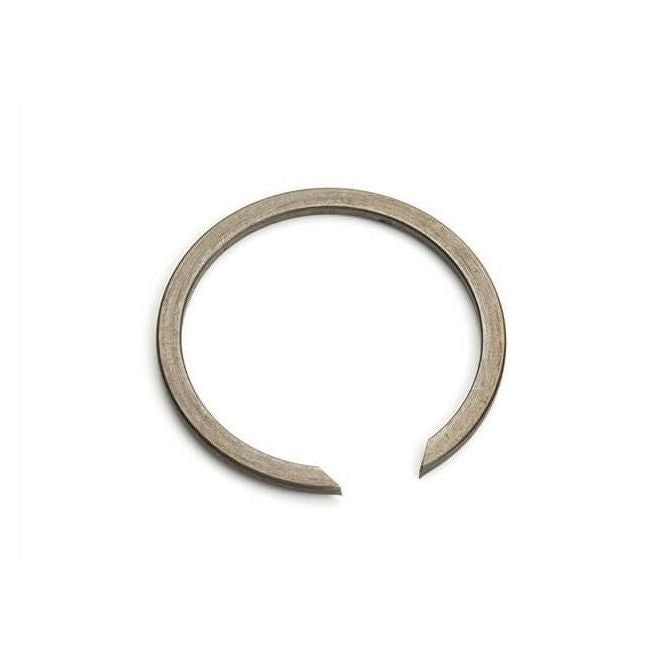

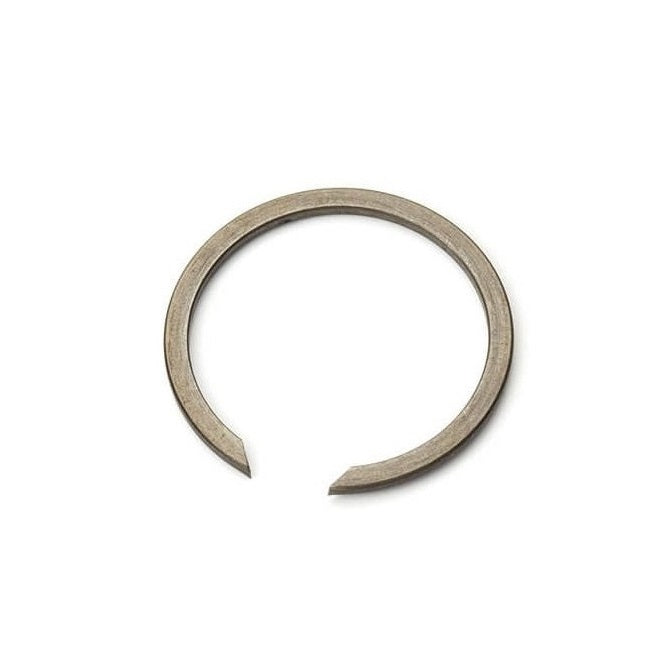

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data
- Housing Bore (B)
:
41.28
mm
(Equiv. 1.625 in.) - Clip Thickness (T)
1.58
mm
+/- 0.05
(Equiv. 0.062 in.) - Groove Dia. (Dg)
43.41
mm
+/- 0.13
(Equiv. 1.709 in.) - Approx. Loose Circlip OD (Dr) 44.09 mm + 1.20 / - 0.00
- Section (Rd) 3.58 mm +/- 0.13
- Groove Width (W) 1.73 mm
- Approx. Loose Clip ID 36.93
- Info Special Open Style
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton NAN-162
- NoCor UHB-162
- Rotorclip UHB-162
- WRI0413SRHO
- UHB162
- NAN162
