WRI-0390-LS - Datasheet
MBA
Category Information

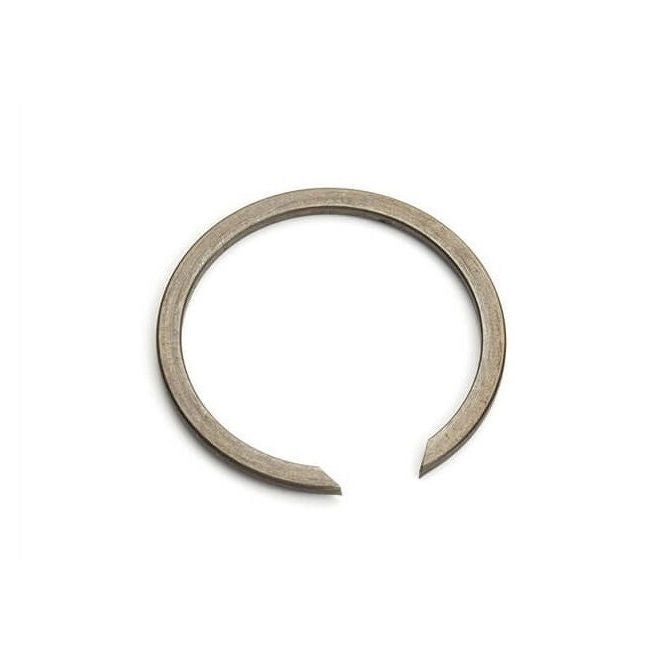

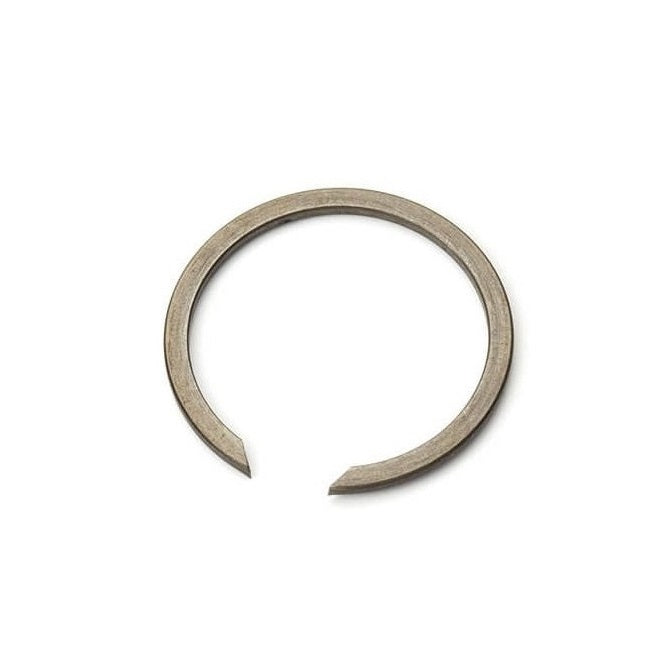

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data
- Housing Bore (B)
:
39.00
mm
(Equiv. 1.535 in.) - Clip Thickness (T)
1.50
mm
+ 0 / - 0.10
(Equiv. 0.059 in.) - Groove Dia. (Dg)
40.20
mm
+ 0.16 / - 0.00
(Equiv. 1.583 in.) - Approx. Loose Circlip OD (Dr) 40.80 mm
- Section (Rd) 2.30 mm + 0 / - 0.10
- Groove Width (W) 1.60 mm
- Approx. Loose Clip ID 36.2
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- NoCor DSB-039
- DSB039
- WRI0390SQ
