WRI-0333-LS-O - Datasheet
MBA
Category Information

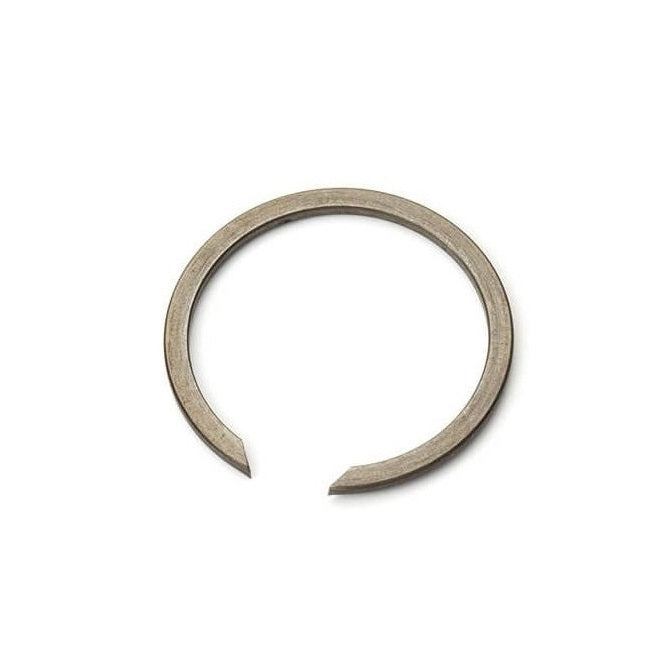

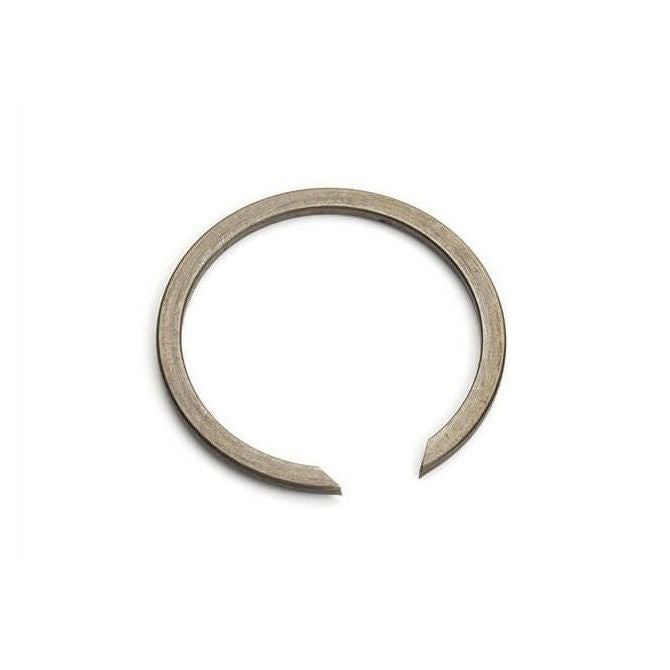

Retaining Rings - Internal - Snap Rings - Basic Carbon SteelBasic Carbon Steel Snap Rings Internal Retaining Rings. M2300 / SB / ESB Snaprings. Like an internal circlip without the lugs.
- An expanded range may be available on special order. Please enquire.
- Applications include gear systems, securing needle bearings and to act as spacers.
- Used on the inside bore diameter of a housing or similar
Product Data
- Housing Bore (B)
:
33.33
mm
(Equiv. 1.312 in.) - Clip Thickness (T)
1.27
mm
+/- 0.05
(Equiv. 0.05 in.) - Groove Dia. (Dg)
35.05
mm
+/- 0.13
(Equiv. 1.38 in.) - Approx. Loose Circlip OD (Dr) 35.66 mm + 0.79 / - 0.00
- Section (Rd) 2.77 mm +/- 0.08
- Groove Width (W) 1.42 mm
- Approx. Loose Clip ID 30.12
- Info Special Open Style
- Section Profile Rectangular with Square Edge
- Material Carbon Spring Steel
Product Compliance and Data
Additional Resources
Cross References
- Eaton NAN-131
- NoCor UHB-131
- Rotorclip UHB-131
- WRI0333SRO
- UHB131
- NAN131
