DVWS0-ADJ-POL - Datasheet

MBA

Category Information

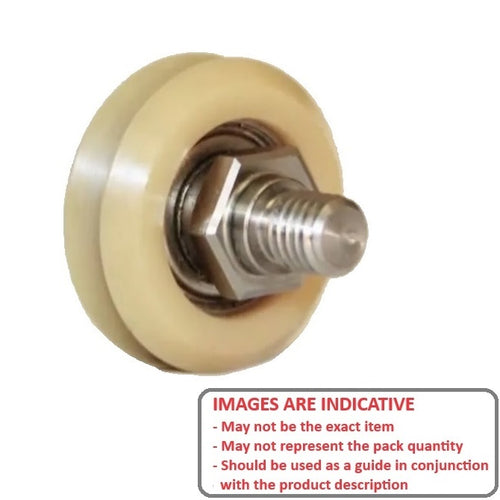

Dual Vee - Studded Guide Wheels

Studded Guide Wheels Dual Vee. Vee grooved track roller guide wheels.

  • An expanded range may be available on special order. Please enquire.
  • Match with correct Track Size.
  • Note! OD is reference only. Allow up to 1.2 mm larger than listed.

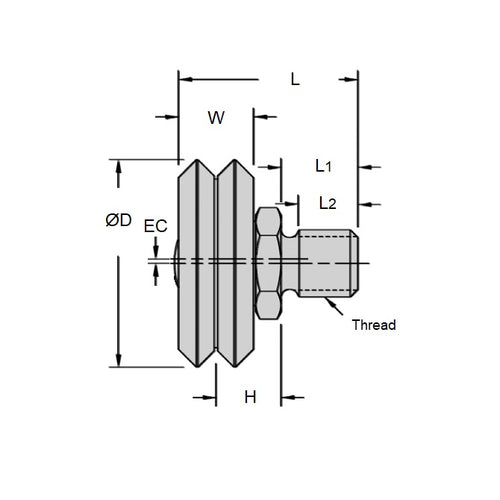

Product Data

  • Size Reference : 0
  • Outside Diameter (O.D) 14.8 mm
    (Equiv. 0.583 in.)
  • Journal Width (W) 6.35 mm
    (Equiv. 0.25 in.)
  • Overall Length (L) 17.0 mm
  • Wheel Type Adjustable
  • Offset Value (EC) 0.81 mm
  • Static Load (Radial / Axial) 3 / - kg
  • Thread Size x Length (l2) M5 x 0.8 x 7.6
  • Material Polymer
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • WZ-423
    • WZ423
