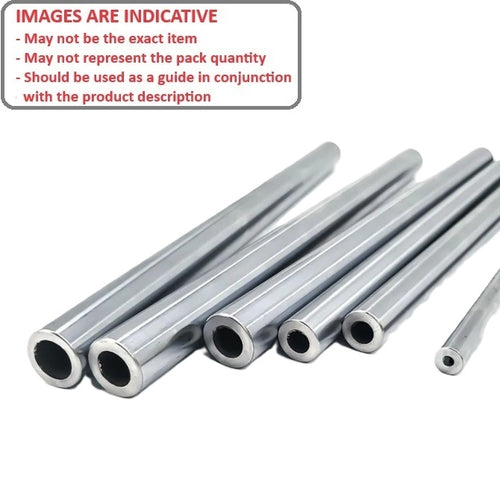

0R-0250-0500-P16-CS5-T20 - Datasheet

MBA

Category Information

Shafting - Pipe - Steel

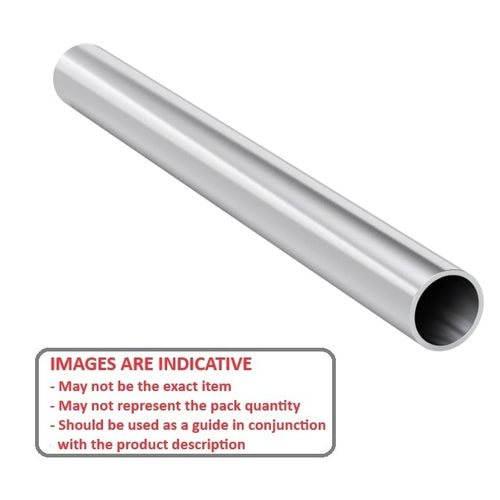

Steel Pipe Shafting.

  • AISI 52100 Steel Hardened to HRC 58-62 Hollow Shaft
  • Straightness 0.0003 mm / mm.
  • Ideal for design weight reduction.
  • Note! ID of pipe shaft may be up to 1mm undersize.
  • Other lengths may be available on request however a surcharge for special sizing will apply and extended delivery times can be expected (if available).

Product Data

  • OD (D) : 25.000 mm - 0.007 / - 0.020
    (Equiv. 0.984 in.)
  • Nominal ID (d) 16.00 mm
    (Equiv. 0.63 in.)
  • Length (L) 500 mm
    (Equiv. 19.685 in.)
  • Case Depth 1.5 mm
  • -0.007/-0.020
  • Material AISI52100 Steel
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • S40LPSM16250500
