0R-0160-1000-CP-T24 - Datasheet

MBA

Category Information

Shafting - Precision Ground - Chrome Plated

Chrome Plated Precision Ground Shafting. Precision ground shafting. AISI C1060 and chrome plated for corrosion resistance. Case hardened and recommended for use with precision bearings. Ends are not plated.

  • An expanded range may be available on special order. Please enquire.
  • Case hardened to 60-65 Rockwell C
  • Chrome plated for corrosion resistance

Product Data

  • Diameter (d) : 16.00 mm - 0.006 / - 0.024
    (Equiv. 0.63 in.)
  • Length (L) 1000.00 mm +/- 0.10
    (Equiv. 39.37 in.)
  • Material Chrome Plated Steel
  • Surface Finish 0.40 Microns
  • Hardness 55HRC
  • Ends Finished and Chamfered
  • Material Chrome Plated Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

Cross References

  • Misumi E-PSFJ16-1000
  • EPSFJ161000
View full details

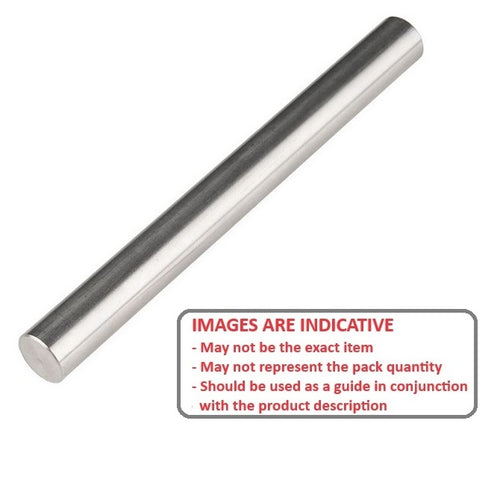

0R-0160-1000-CP-T24Diagram0R-0160-1000-CP-T24Image
