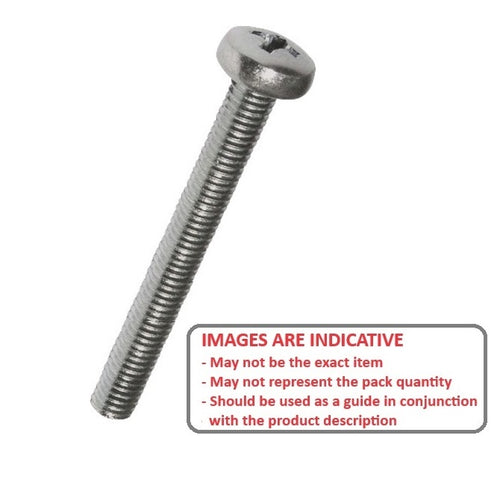

SC035C-045-P-PH-S6 - Datasheet
MBA
Category Information
Screws - Pan Head - Phillips - 316 Stainless316 Stainless Phillips Pan Head Screws. Metal Thread Screws UNC - UNF - METRIC - Pan, cheese, fillister and round head.
- An expanded range may be available on special order. Please enquire.
- Nuts sold seperately - See Nuts.
Product Data
- Thread Size (C) : 6-32 UNC (3.5mm)
- Thread Length (L)
44.5
mm
(Equiv. 1.752 in.) - Material 316 Stainless
- Max Head Diameter 6.9 mm
- Max Head Height 2.1 mm
- Pitch 0.794 mm
- Threads Per Inch 32 TPI
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
- Screws & Nuts Catalogue
- Shoulder Screws Catalogue
- Socket Set (Grub) Screws Catalogue
- Thumb Screws & Thumb Nuts Catalogue
- Thread Size Chart - Combined Imperial & Metric
Cross References
- Brighton Best 6-32Cx1.3-4SPXM6
- 91735A327
- 632Cx134SPXM6
