ID-P030S-25-007-050B-F-A-C - Datasheet

MBA

Category Information

Pulleys - Timing Idler

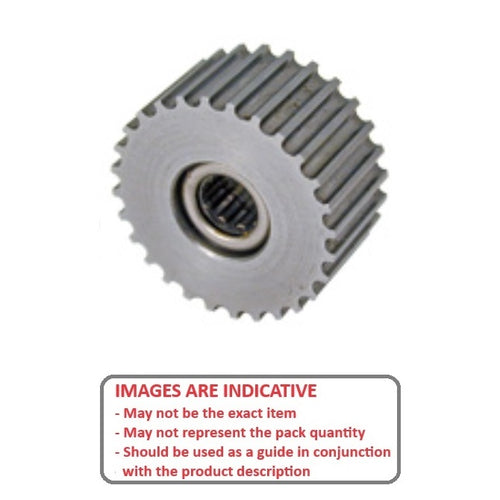

Timing Idler Pulleys. Complete with Needle Roller Bearing.

  • Timing pulleys combined with timing belts, provide power transmission without slippage.
  • The timing belt idler spins on the shaft rather than transimitting torque from the belt. This allows for an adjustable idler shaft to be able to modify the tension of the timing system.
  • Can be used directly on shafts with a surface hardness of RC 58 or higher.
  • Can be run on hardened Inner Rings.
  • See also Drive Tighteners. 12.7mm Bore models can be run directly on the drive tighteners.

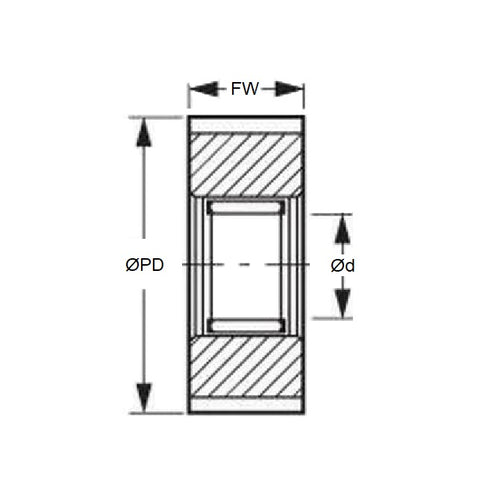

Product Data

  • Belt Type : S3M
  • O.D. 23.110 mm
    (Equiv. 0.91 in.)
  • Bore (B) 5.000 mm
    (Equiv. 0.197 in.)
  • Face Width (F) 7.00 mm
  • Number of Teeth 25
  • Bearing Type Ball Bearing - Centre
  • Style Flanged
  • Flange Diameter 28.00
  • Material Aluminium Alloy Clear Anodised
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • Misumi AHTF25S3M060
