RLR-0300-2600-ST-F - Datasheet

MBA

Category Information

Rollers - Steel

Steel Rollers. Hardened Steel Rollers as used in Cylindrical and Needle Roller Bearings

  • Hardened Steel Rollers as used in Cylindrical and Needle Roller Bearings.

Product Data

  • Diameter (D) : 3.000 mm - 0.001 / - 0.003
    (Equiv. 0.118 in.)
  • Length (L) 26.000 mm -0.000 / -0.330
    (Equiv. 1.024 in.)
  • Hardness 63 - 66 Rc
  • End Type Flat
  • Material Chrome Steel SAE 52100
Country of Origin: TW

Product Compliance and Data

Additional Resources

    View full details

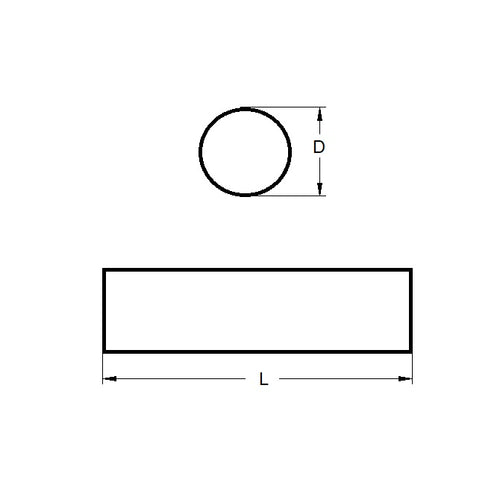

    RLR-0300-2600-ST-FDiagramRLR-0300-2600-ST-FImage
