STQ20RS - Datasheet
MBA
Category Information

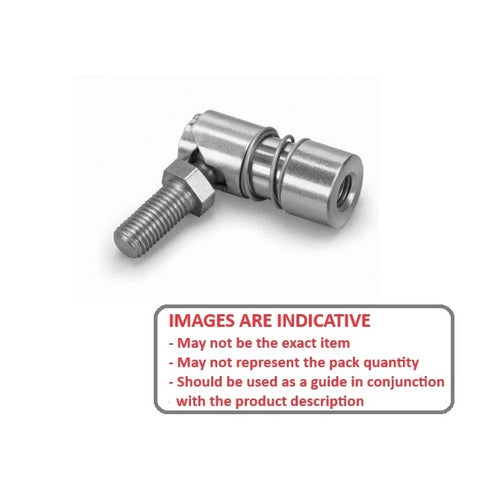

Rod Ends - Female - Steel - Studded - Quick Disconnect- Joints are strength, quick disconnect assemblies with good wear characteristics.
- Retaining sleeve insures the assembly can only be put together with the sleeve positively aligned with the ball cavity.
- When spring is released, alignment is automatic thereby eliminating any possiblity of partial closure.
- Ball stud and Body are made of low carbon steel. Studs are surface hardened. All Parts are plated and dichromate treated.

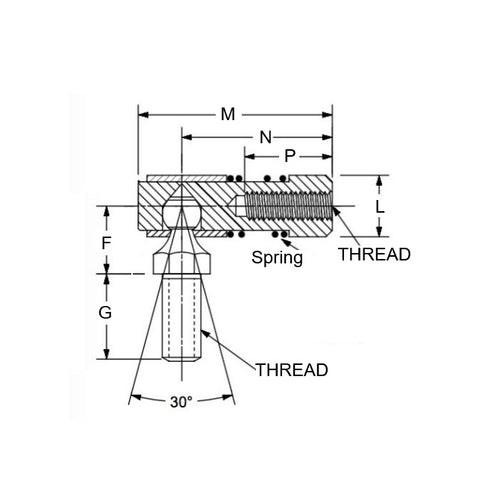

Product Data
- Thread Size : 3/8-24 UNF (9.53mm) Right Hand
- Thread Length 1
20.63
mm
(Equiv. 0.812 in.) - Thread Length 2
22.23
mm
(Equiv. 0.875 in.) - Head Diameter 19.05 mm
- Centre Height 39.68 mm
- Base Length (P) 34.93 mm
Product Compliance and Data
Additional Resources
Cross References
- 6058K34
- STQ-20
- STQ20
