SPM12SRS - Datasheet
MBA
Category Information

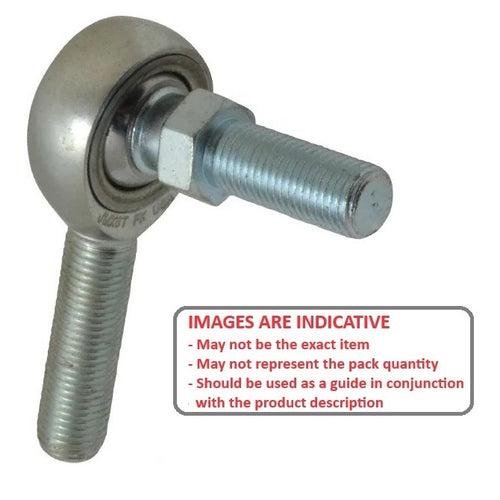

Rod Ends - Male - Steel - Studded - Nylon Seat- Housing is plated and dichromate treated steel.
- Ball is case hardened and plated
- Stud is permanently affixed and made from heat treated alloy steel, zinc plated.
Product Data

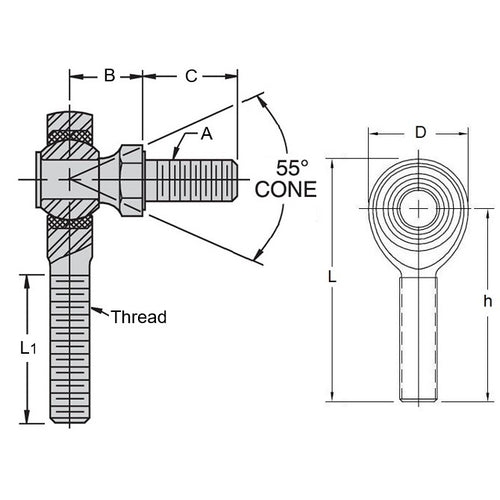

- Thread Size : 3/4-16 UNF (19.05mm) Right Hand
- Thread Length (H)
44.45
mm
(Equiv. 1.75 in.) - Thread Length (C)
46.03
mm
(Equiv. 1.812 in.) - Head Diameter (E) 44.45 mm
- Centre Height (G) 73.03 mm
- Top Width (M) 17.45 mm
- Ball Width (L) 22.23 mm
Product Compliance and Data
Additional Resources
Cross References
- SPM12S
- SPM-12S
