Miniature Bearings Australia
SPM4SRS - Datasheet
MBA
Category Information

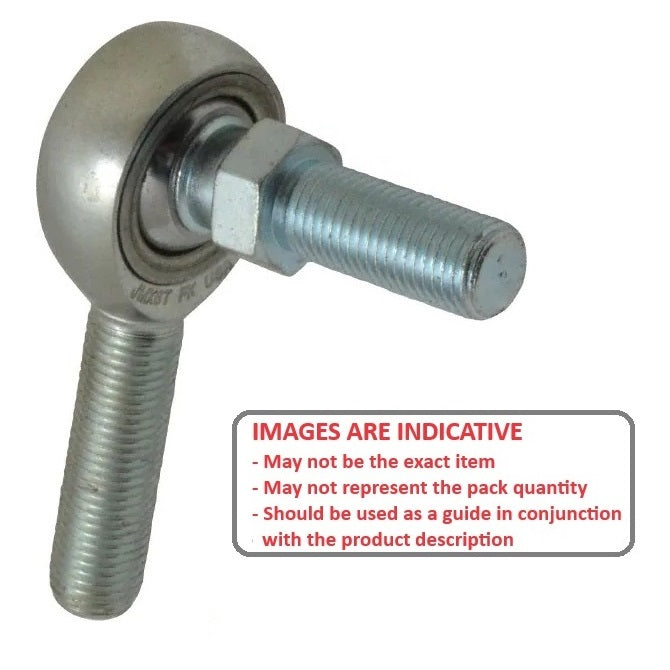

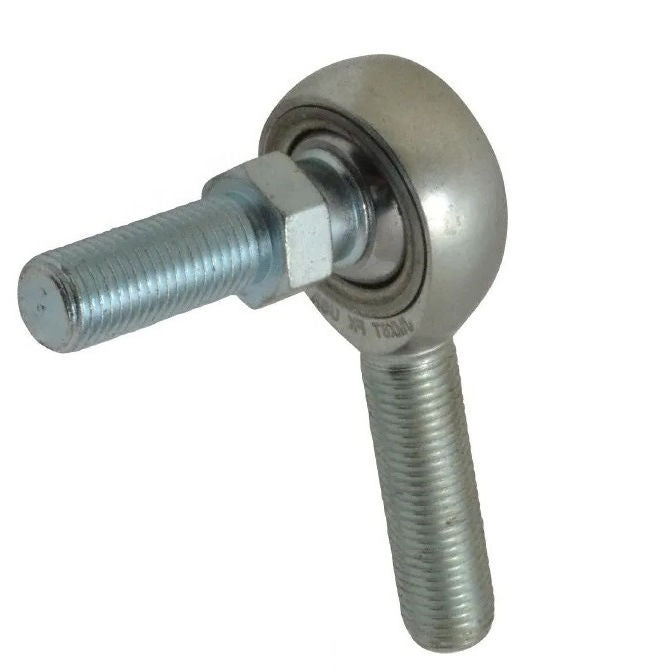

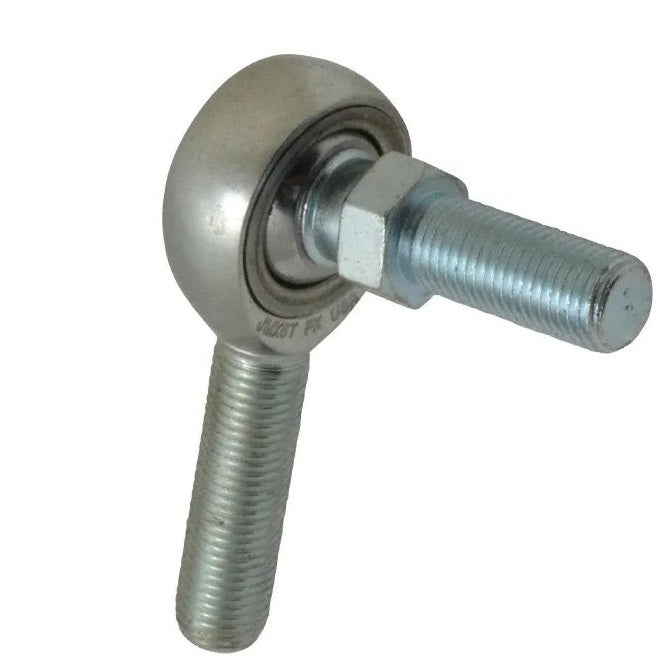

Rod Ends - Male - Steel - Studded - Nylon Seat- Housing is plated and dichromate treated steel.
- Ball is case hardened and plated
- Stud is permanently affixed and made from heat treated alloy steel, zinc plated.
Product Data

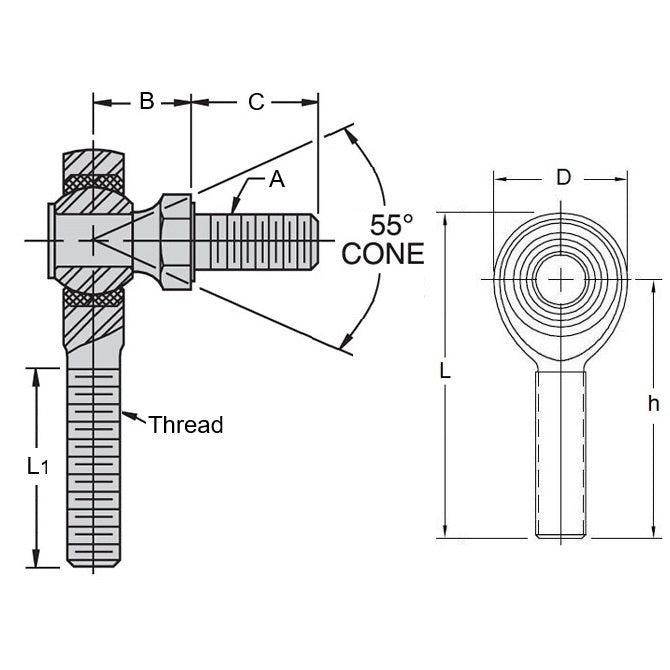

- Thread Size : 1/4-28 UNF (6.35mm) Right Hand
- Thread Length (H)
25.40
mm
(Equiv. 1 in.) - Thread Length (C)
14.28
mm
(Equiv. 0.562 in.) - Head Diameter (E) 19.05 mm
- Centre Height (G) 39.68 mm
- Top Width (M) 07.14 mm
- Ball Width (L) 09.53 mm
Product Compliance and Data
Additional Resources
Cross References
- SPM4S
- SPM-4S
