SPM3SRS - Datasheet
MBA
Category Information

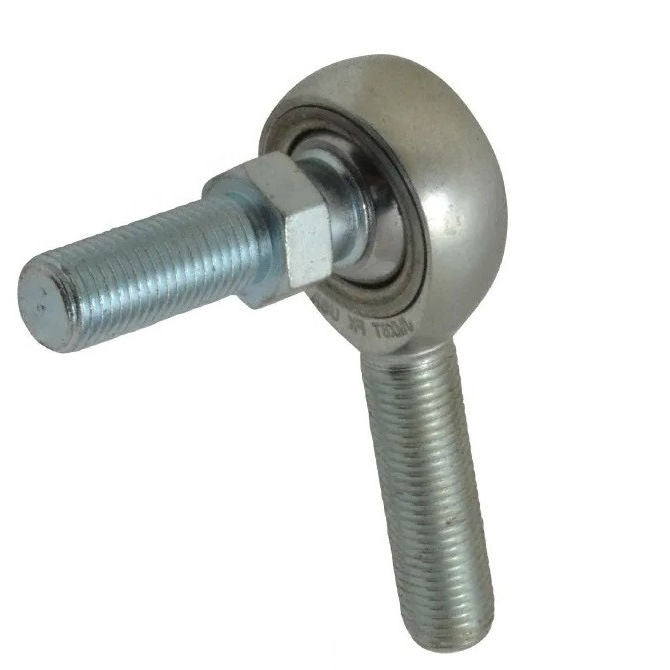

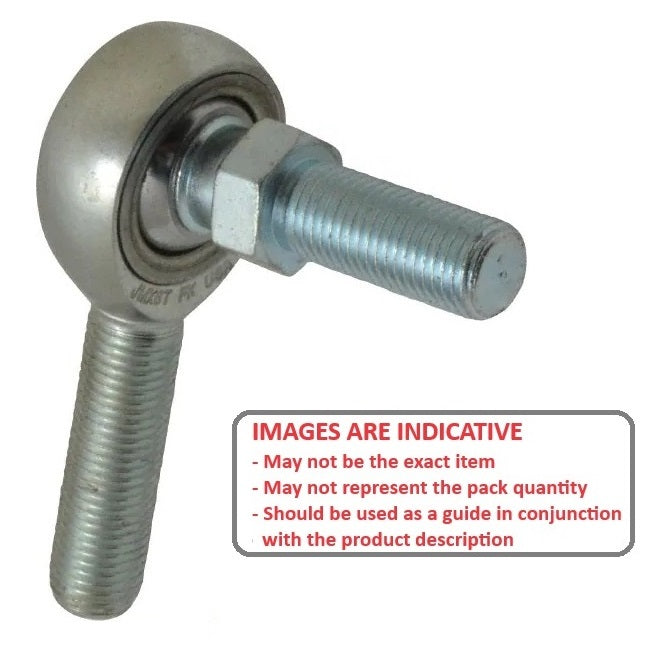

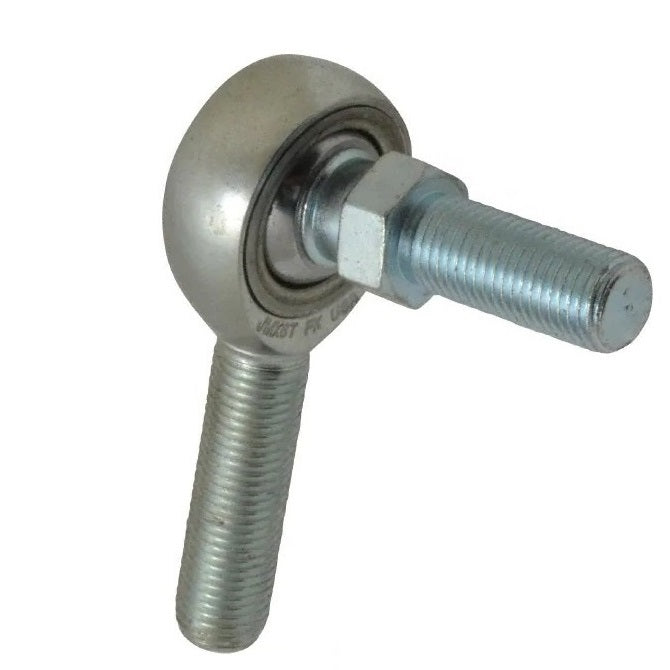

Rod Ends - Male - Steel - Studded - Nylon Seat- Housing is plated and dichromate treated steel.
- Ball is case hardened and plated
- Stud is permanently affixed and made from heat treated alloy steel, zinc plated.
Product Data

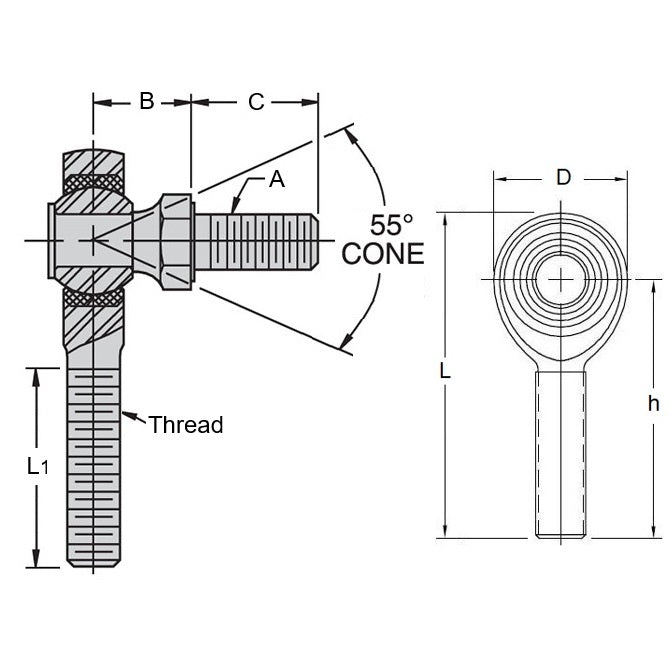

- Thread Size : 10-32 UNF (4.76mm) Right Hand
- Thread Length (H)
19.05
mm
(Equiv. 0.75 in.) - Thread Length (C)
11.10
mm
(Equiv. 0.437 in.) - Head Diameter (E) 15.88 mm
- Centre Height (G) 31.75 mm
- Top Width (M) 06.35 mm
- Ball Width (L) 07.93 mm
Product Compliance and Data
Additional Resources
Cross References
- SPM-3S
- SPM3S
