SPF5SRS - Datasheet
ENQUIRE
Category Information

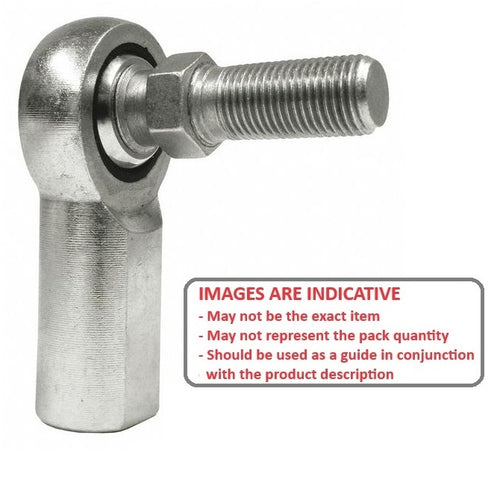

Rod Ends - Female - Steel - Studded - Nylon SeatNylon Seat Studded Steel Female Rod Ends. Housing is plated and dichromate treated steel.
- An expanded range may be available on special order. Please enquire.
- Ball is case hardened and plated
- Stud is permanently affixed and made from heat treated alloy steel, zinc plated.

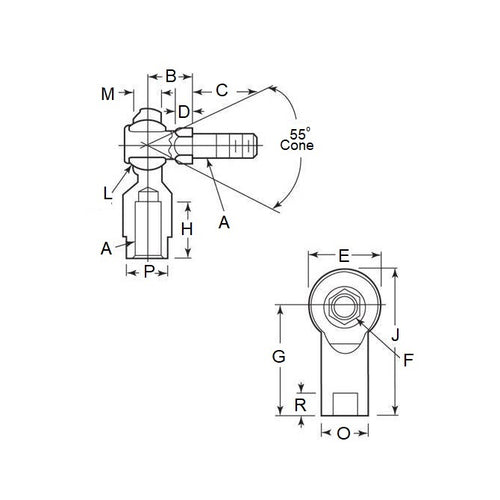

Product Data
- Thread Size : 5/16-24 UNF (7.94mm) Right Hand
- Thread Length (H) 19.05 mm
- Thread Length (C) 17.45 mm
- Head Diameter (E) 22.23 mm
- Centre Height (G) 34.93 mm
- Top Width (M) 08.74 mm
- Ball Width (L) 11.10 mm
- Base Width 12.70 mm
- Base Length (P) 11.10 mm
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® SPF-5S
- SPF5S
