SG0401-83R115C3KSS - Datasheet
MBA
Category Information
Ballscrew - Ground Miniature Dia 4mm - Lead 1mmLead 1mm Ground Miniature Dia 4mm Ballscrew. Not for sale outside of Australia and New Zealand
- Only one remaining miniature ballscrew looking for someone to make it useful.
- This category will be discontinued when this item is sold. The items is priced to quit.
- Backorders or orders for previously listed items in the category will only be available for very large orders.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

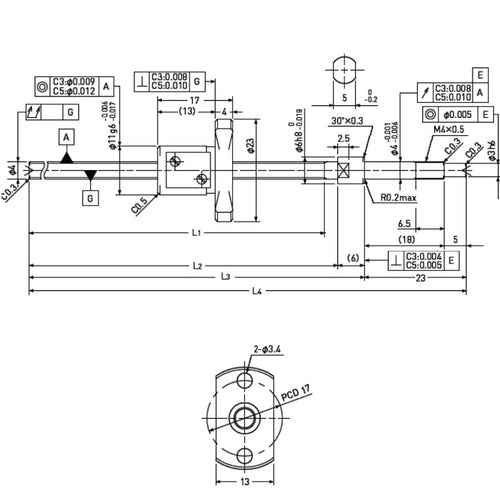

- Thread Direction : Right
- Shaft Length (L1/L2/L3/L4)
83 / 86 / 92 / 115
mm
(Equiv. 3.268 in.) - Travel Distance
65
mm
(Equiv. 2.559 in.) - Basic Dynamic Load 350 N
- Basic Static Load 400 N
- Hardness HRC58 ~ 62
- Grade C3
- More Information For more information, please contact us
- Material Chrome Steel
Product Compliance and Data
Additional Resources
Cross References
- Reliance SG0401-83R115C3
- SG040183R115C3
