RT-040-1600-250-300-H - Datasheet

MBA

Category Information

Ratchets and Pawls - Ratchets - Without Hub

Without Hub Ratchets Ratchets and Pawls. Match with pawls listed on this site.

  • An expanded range may be available on special order. Please enquire.

Product Data

  • Pitch : 12.57 CP
  • Teeth (No.) 40
  • Outside Diameter 160 mm
    (Equiv. 6.299 in.)
  • Bore 30 mm
  • Face Width 25 mm
  • Total Width 12 mm
  • Additional Info 8.0x3.3 Keway
  • Material Black Oxide Steel
Country of Origin: JP

Product Compliance and Data

Additional Resources

    Cross References

    • SRT440J30
    View full details

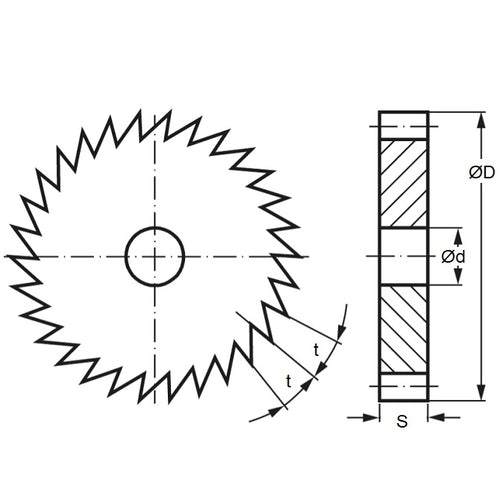

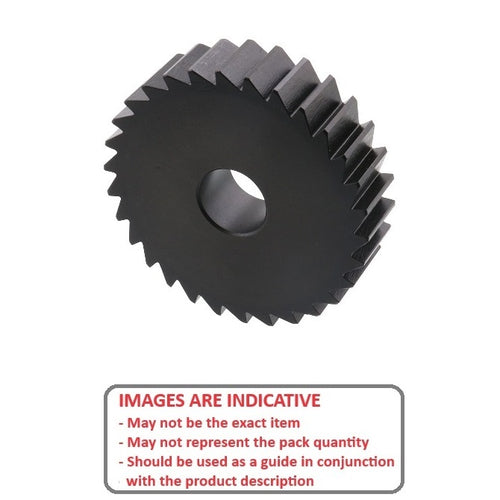

    RT-040-1600-250-300-HDiagramRT-040-1600-250-300-HImage
