RP060-0350-4 - Datasheet
ENQUIRE
Category Information

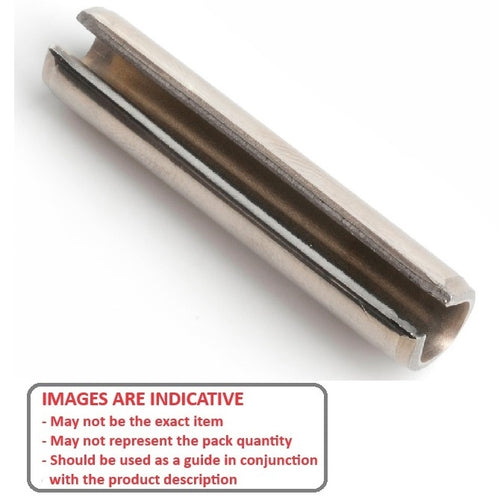

Pins - Roll - Stainless Steel - 300 Grade300 Grade Stainless Steel Roll Pins. 300 Grade Stainless DIN1481/ISO8752.
- An expanded range may be available on special order. Please enquire.
- Also known as sel-lok and bissell pins
Product Data
- Nominal Diameter (D) : 6.00 mm
- Length (L) 35.00 mm
- Free Diameter 6.60 mm
- Thickness (S) 1.20 mm
- Chamfer Length (cL) 1.20-1.40 mm
- Standard DIN1481 / ISO8752
- Type Standard
- Material Stainless Steel 304 (Similar to A2, 18-8) HRB80
Product Compliance and Data
Additional Resources
Cross References
- NoCor® SPM3P-060-035-AQt.2762347
- NoCor® SPM3P-060-035-I
- NoCor® SPMS-060-035-304SS
- SRP635
- SRP6-35
- SPMS060035304SS
- SPM3P060035AQt2762347
- SPM3P060035I
