HPE-095-16-025-C - Datasheet
MBA
Category Information

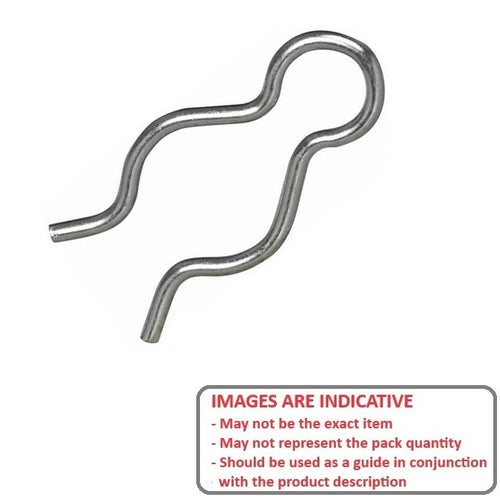

Pins - Hitch ExternalHitch External Pins. Similar to R-Clips, but designed for both arms to fit around a shaft groove rather thand having one arm through a bored hole.
Product Data
- Recommended Groove Diameter
:
9.53
mm
(Equiv. 0.375 in.) - Rec. Groove Width
2.0
mm

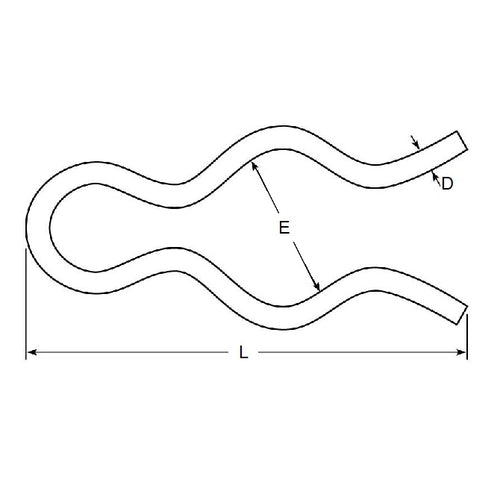

(Equiv. 0.079 in.) - Wire Thickness (D)
1.6
mm
(Equiv. 0.063 in.) - Inside Eye Diameter (E) 7.9 mm
- Length (L) 25.4 mm
- Material Spring Wire, Oil-Tempered
Product Compliance and Data
Additional Resources
Cross References
- 98395A221
- A9Q34X2
- A9Q34-X2
