DP030-017-420-3-L20 - Datasheet
MBA
Category Information

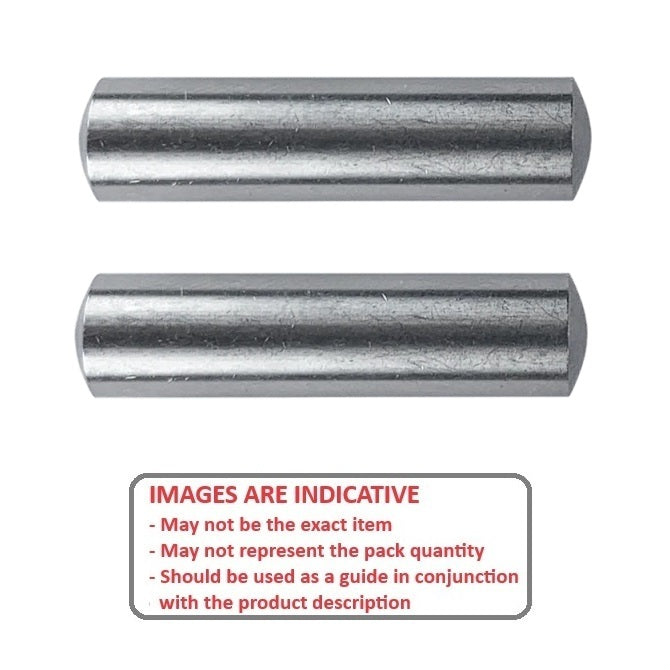

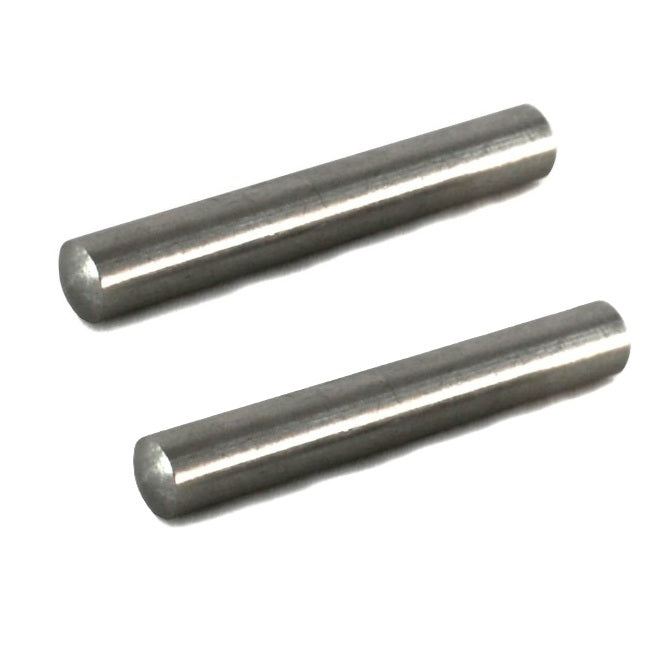

Pins - Dowel - Standard - Rounded Ends - 420 Stainless420 Stainless Rounded Ends Standard Dowel Pins. Precision Dowel Pins - 420 Grade - Based on DIN7
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
- Diameter tolerances are m6 unless otherwise listed
Product Data
- Diameter (D)
:
3.000
mm
+ 0.004 / + 0.012
(Equiv. 0.118 in.) - Length (L)
17.00
mm
+/- 0.420
(Equiv. 0.669 in.) - Approx. Overall Length
20.00
mm
+/ - 0.420

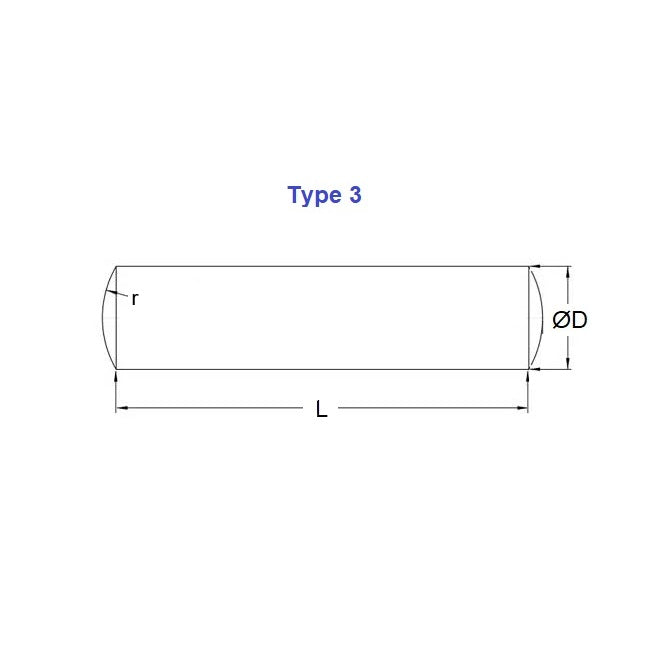

(Equiv. 0.787 in.) - Type 3 (Rounded Ends)
- Notes End radius 1.5mm
- Standard Based on DIN 7 with Special Radius
- Material Stainless Steel 400 Series Unhardened
