DP025-006-416-2 - Datasheet
NoCor
Category Information

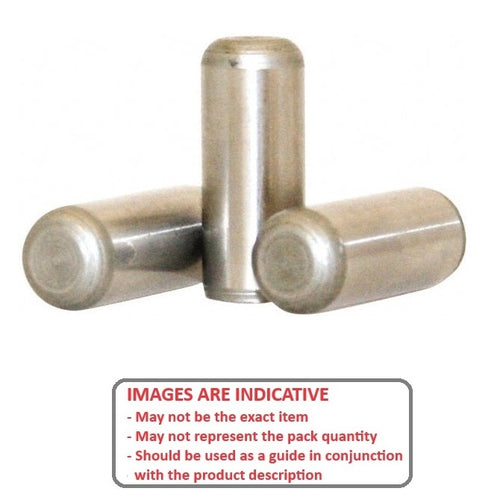

Pins - Dowel - Standard - Chamfered Ends - 416 Stainless416 Stainless Chamfered Ends Standard Dowel Pins. Precision Dowel Pins - 416 Grade - Based on DIN6325 or ISO2338
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Note! Type 2 pins may be supplied in lieu of type 1 pins.
Product Data
- Diameter (D)
:
2.500
mm
+ 0.002 / + 0.008
(Equiv. 0.098 in.) - Length (L)
6.00
mm
+/- 0.254
(Equiv. 0.236 in.) - Approx. Overall Length
6.00
mm
+/ - 0.254
(Equiv. 0.236 in.) - Type 2 (Chamfer Both Ends)
- Chamfer 0.40 x 15 Deg
- Standard Based on ISO 2338
- Material Stainless Steel AISI 416 Rc 36-42
