DP050-040-316-3 - Datasheet
NoCor
Category Information

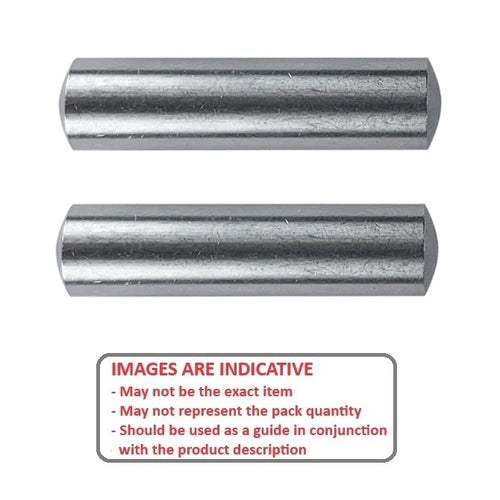

Pins - Dowel - Standard - Rounded Ends - 316 Stainless316 Stainless Rounded Ends Standard Dowel Pins. Precision Dowel Pins - 316 Grade - Based on DIN7
- Also known as parallel pins
- Dowel pins are not used as bearing shafts under normal circumstances, due to their oversized tolerances
- An expanded range may be available on special order. Please enquire.
- Rounded end dowel pins are measured from the start of the edge rounding. This allows the pin to completely fill the hole after you grind off the rounded end.
- Diameter tolerances are m6 unless otherwise listed
Product Data
- Diameter (D)
:
5.000
mm
+ 0.004 / + 0.012
(Equiv. 0.197 in.) - Length (L)
40.00
mm
+/- 0.500
(Equiv. 1.575 in.) - Approx. Overall Length
41.50
mm
+/ - 0.500

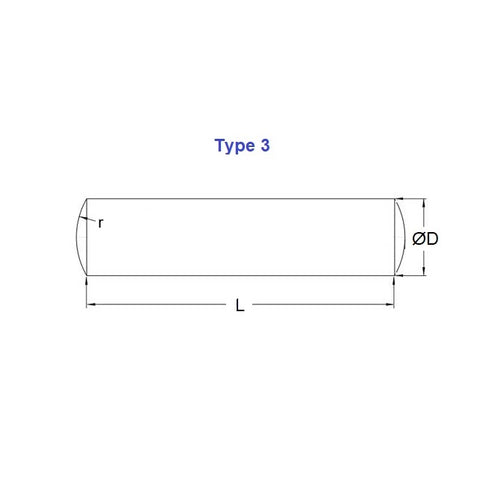

(Equiv. 1.634 in.) - Type 3 (Rounded Ends)
- Standard Based on DIN 7
- Material Stainless Steel 316 (Similar to A4, 18-10)
Product Compliance and Data
Additional Resources
Cross References
- NoCor DOWM6-050-040
- DP5.0-40/A4
- DOWM6050040
- DP5040/A4
