SHX-TP-0600-10-040-MZ - Datasheet
MBA

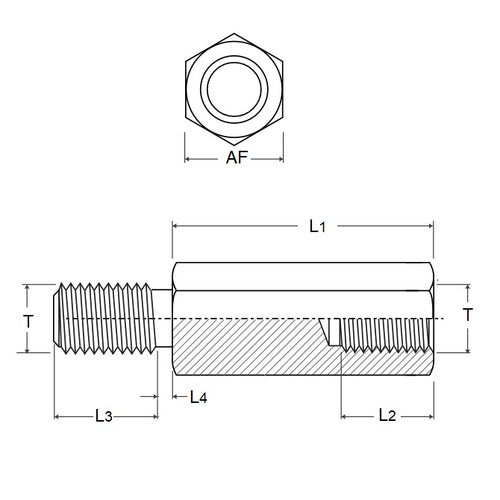

Product Data
- Thread Size : M6 (6x1mm)
- Stud Length (L3) 10.00 mm
- Base Length (L1) 30.00 mm
- Across Flats (A/F) 10.00 mm
- Bore Thread Length (L2) 10.00 mm
- Unthreaded Length (L4) 2.10 mm
- Radius (R) 0.25 mm
- Finish Electro-Zinc Yellow
- Material Steel - Mild S300 Pb
Product Compliance and Data
Additional Resources
Cross References
- MPE630
- MPE6-30
