WCP-40RS - Datasheet
MBA
Category Information

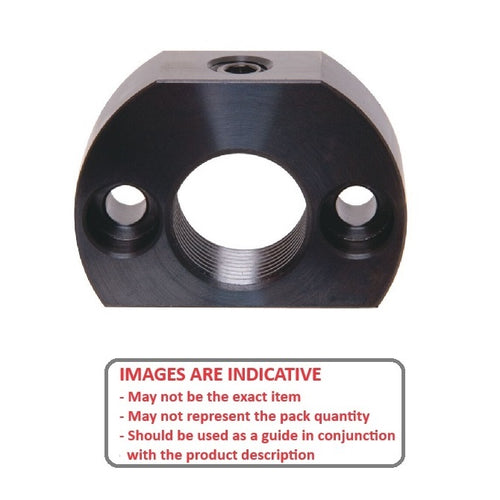

Plungers - Indexing Cam Action Mounting BlocksIndexing Cam Action Mounting Blocks Plungers. Used with cam action indexing plungers
- Mounting blocks are made from steel with black oxide finish.

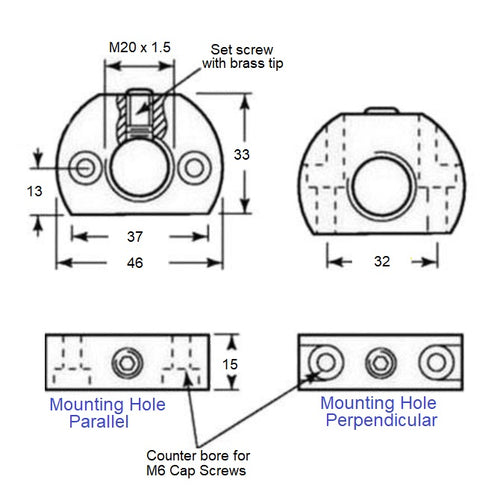

Product Data
- Hole Style : Parallel Hole
- Overall Height
33.0
mm
(Equiv. 1.299 in.) - Overall Width
46.0
mm
(Equiv. 1.811 in.) - Thread Hole Size 20.0 mm
- Overall Thickness 15.0 mm
- Material Steel
