MAG-CP-052-59-17-CL-B - Datasheet
MBA
Category Information

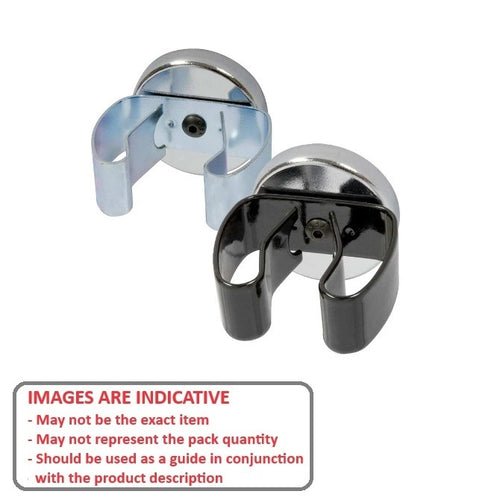

Magnets - Cup Assemblies with ClipsCup Assemblies with Clips Magnets. This is the main category in this series
- Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
- Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.
Product Data
- Diameter (A)
:
51.56
mm
(Equiv. 2.03 in.) - Overall Height
58.67
mm
(Equiv. 2.31 in.) - Clip Style Option 3
- Clip Material Black Vinyl
- Max Holding Value 17.24 kg
- Opening Range 50.80 - 63.50 mm
- Material Black Vinyl
Product Compliance and Data
Additional Resources
Cross References
- IM418
- IM-418
