MAG-CP-032-29-06-CL-B - Datasheet
MBA
Category Information

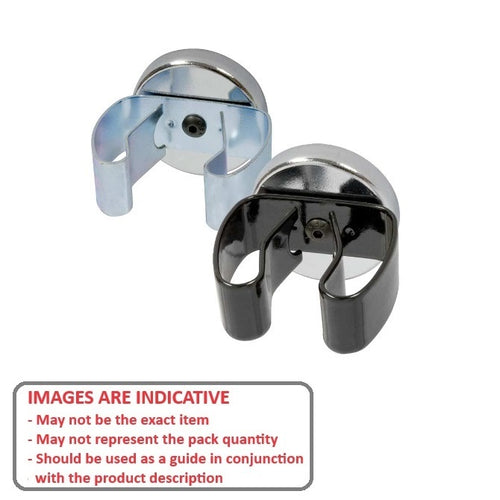

Magnets - Cup Assemblies with ClipsCup Assemblies with Clips Magnets. This is the main category in this series
- Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
- Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.
Product Data
- Diameter (A) : 31.50 mm
- Overall Height 28.70 mm
- Clip Style Option 3
- Clip Material Black Vinyl
- Max Holding Value 6.35 kg
- Opening Range 9.65 - 16.00 mm
- Material Black Vinyl
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® IM-416
- IM416
