MAG-CP-067-73-37-CL - Datasheet
MBA
Category Information

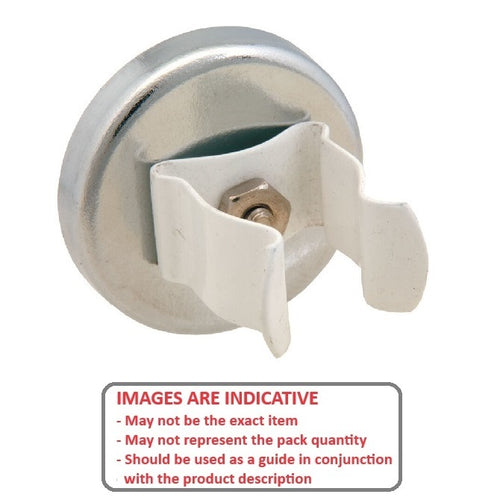

Magnets - Cup Assemblies with ClipsCup Assemblies with Clips Magnets. This is the main category in this series
- Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
- Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.
Product Data
- Diameter (A)
:
66.80
mm
(Equiv. 2.63 in.) - Overall Height
73.15
mm
(Equiv. 2.88 in.) - Clip Style Option 1
- Clip Material White Plastic
- Max Holding Value 37.19 kg
- Opening Range 25.40 - 47.75 mm
- Material White Plastic
Product Compliance and Data
Additional Resources
Cross References
- IM-411
- IM411
