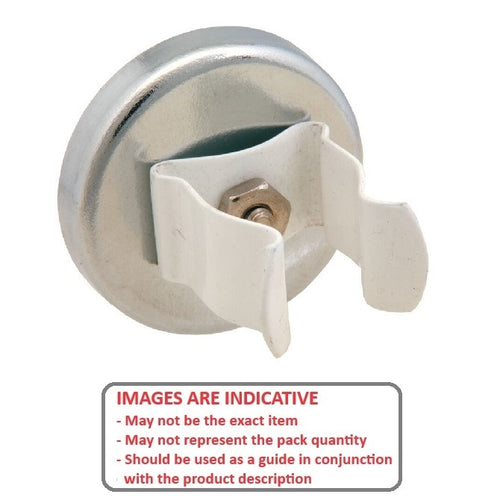

MAG-CP-052-59-17-CL-A - Datasheet
MBA
Category Information
Magnets - Cup Assemblies with ClipsCup Assemblies with Clips Magnets. This is the main category in this series
- Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
- Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.
Product Data
- Diameter (A) : 51.56 mm
- Overall Height 58.67 mm
- Clip Style Option 1
- Clip Material White Plastic
- Max Holding Value 17.24 kg
- Opening Range 16.00 - 31.75 mm
- Material White Plastic
Product Compliance and Data
Additional Resources
Cross References
- Reid Tool® IM-410
- IM410
