Miniature Bearings Australia

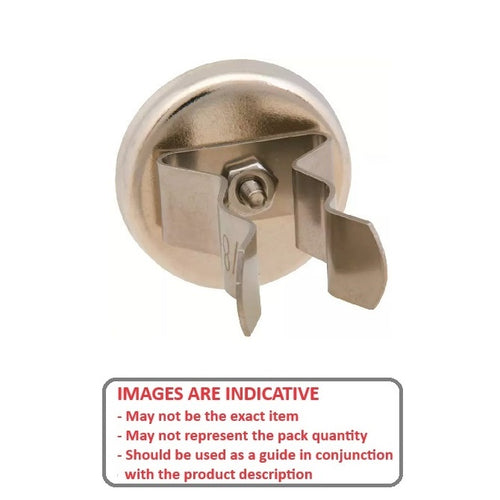

MAG-CP-032-21-06-CL - Datasheet
MBA
Category Information
Magnets - Cup Assemblies with ClipsCup Assemblies with Clips Magnets. This is the main category in this series
- Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
- Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.
Product Data
- Diameter (A)
:
31.50
mm
(Equiv. 1.24 in.) - Overall Height
20.57
mm

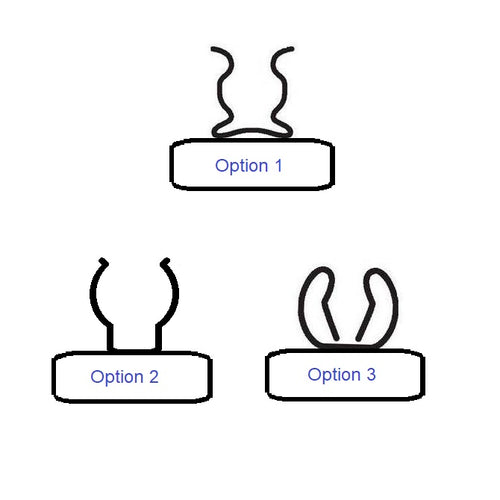

(Equiv. 0.81 in.) - Clip Style Option 1
- Clip Material Stainless Steel
- Max Holding Value 6.35 kg
- Opening Range 9.65 - 12.70 mm
- Material Stainless Steel
Product Compliance and Data
Additional Resources
Cross References
- IM-404
- IM404
