MAG-CP-067-64-37-CL - Datasheet

MBA

Category Information

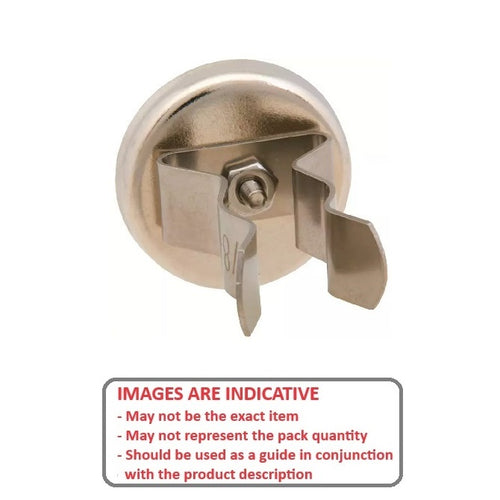

Magnets - Cup Assemblies with Clips

Cup Assemblies with Clips Magnets. This is the main category in this series

  • Permanent magnet (neodymium or ceramic) housed in a metal cup to concentrate and amplify its holding power, making it much stronger than the magnet alone.
  • Assemblies are designed for holding, lifting, and mounting applications, with a steel cup protecting the brittle magnet and directing the magnetic force to the working surface.

Product Data

  • Diameter (A) : 66.80 mm
  • Overall Height 63.50 mm
  • Clip Style Option 1
  • Clip Material Nickel Plated
  • Max Holding Value 37.19 kg
  • Opening Range 25.40 - 47.75 mm
  • Material Nickel Plated
Country of Origin: US

Product Compliance and Data

Additional Resources

    Cross References

    • Reid Tool® IM-403
    • IM403
