MAG-CP-036-39-10-CL-C - Datasheet

MBA

Category Information

Magnets - Cup Assemblies with Clips

Cup Assemblies with Clips Magnets. This is the main category in this series

    Product Data

    • Diameter (A) : 35.81 mm
      (Equiv. 1.41 in.)
    • Overall Height 38.86 mm
      (Equiv. 1.53 in.)
    • Clip Style Option 1
    • Clip Material Nickel Plated
    • Max Holding Value 9.98 kg
    • Opening Range 7.87 - 19.05 mm
    • Material Nickel Plated
    Country of Origin: US

    Product Compliance and Data

    Additional Resources

      Cross References

      • IM-401
      • IM401
      View full details

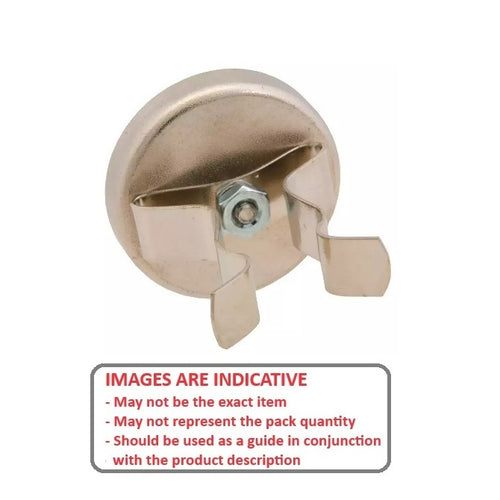

      MAG-CP-036-39-10-CL-CDiagramMAG-CP-036-39-10-CL-CImage
