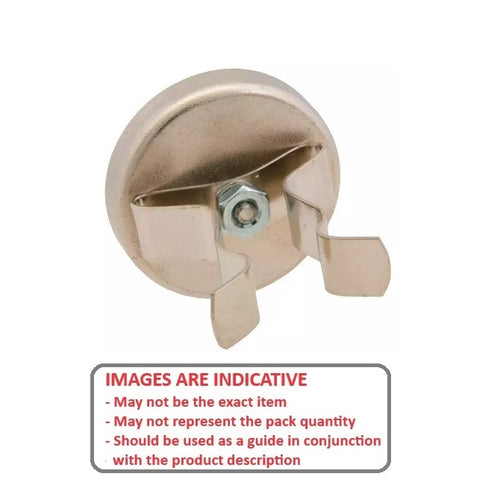

MAG-CP-032-22-06-CL - Datasheet
MBA
Category Information
Magnets - Cup Assemblies with ClipsCup Assemblies with Clips Magnets. This is the main category in this series
Product Data
- Diameter (A)
:
31.50
mm
(Equiv. 1.24 in.) - Overall Height
22.35
mm
(Equiv. 0.88 in.) - Clip Style Option 1
- Clip Material Nickel Plated
- Max Holding Value 6.35 kg
- Opening Range 4.83 - 9.65 mm
- Material Nickel Plated
Product Compliance and Data
Additional Resources
Cross References
- IM400
- IM-400
