OR-00620-100-N70 - Datasheet
NSK
Category Information

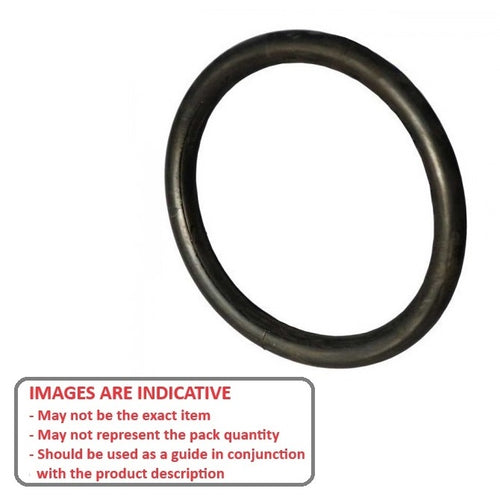

O-Rings - General Purpose - Nitrile Rubber PacksNitrile Rubber Packs General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.
- Neoprene and Nitrile O-Rings with excellent resistance to ageing and weathering effects.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

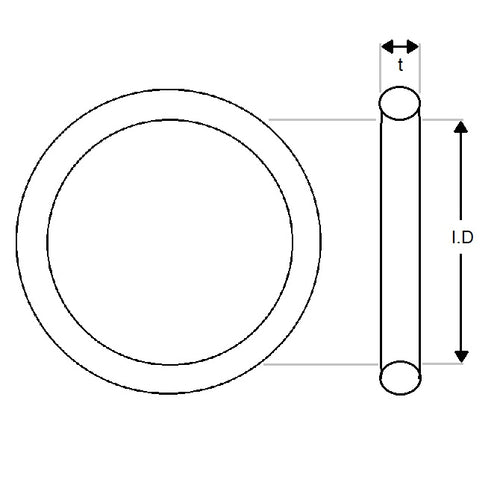

- Inside Diameter (ID)
:
6.20
mm
(Equiv. 0.244 in.) - Section (t)
1.00
mm
(Equiv. 0.039 in.) - Colour Black
- Hardness Duro 70
- Special Applications NSK MACH - MACH-LITE P045SU03 - P046TU03 (Green-Black)
- Special Applications MACH MINI- MACH-LITE MINI P047MU03 Red Band
- Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
Applications & Uses
- Dental Handpiece Parts
- NSK - Mach - Mach-LITE P045SU03 - P046TU03 Green-Black - Oring
- NSK - Mach Mini- Mach-LITE Mini P047MU03 Red Band - Oring
Cross References
- ORB-00620-100-N70
- ORB00620100N70
