OR-01704-353-N90-209 - Datasheet
MBA
Category Information
O-Rings - General Purpose - Nitrile Rubber PacksNitrile Rubber Packs General Purpose O-Rings. General purpose. Includes o-rings for dental handpiece applications.
- Neoprene and Nitrile O-Rings with excellent resistance to ageing and weathering effects.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -30 Deg C to +90 Deg C.
- Nitrile: Excellent resistance to mineral oil based fluids, hydrocarbon fuels, greases and water.
- Not suitable for aromatic hydrocarbons, chlorinated hydrocarbons, brake fluid and some fire resistant hydraulic fluids.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data

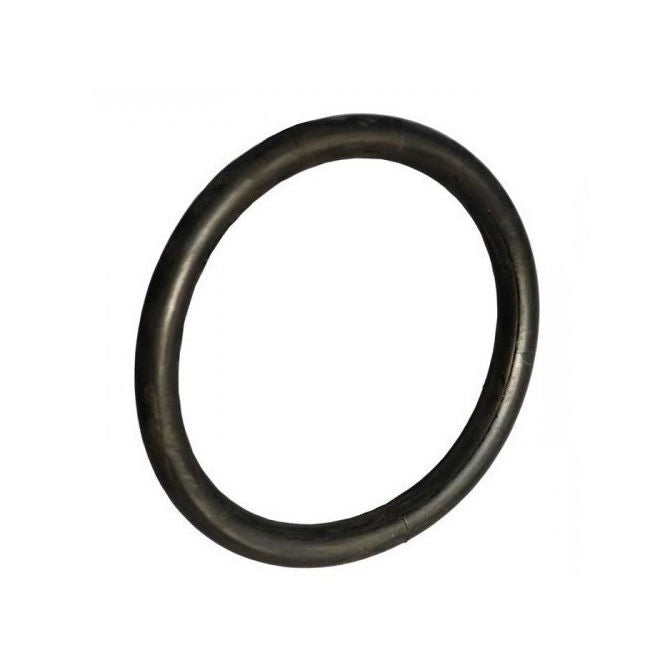

- Inside Diameter (ID) : 17.04 mm
- Section (t) 3.53 mm
- Colour Black
- Hardness 90 Durometer
- Material Nitrile (NBR, BUNA-N)
Product Compliance and Data
Additional Resources
Cross References
- ORB01704353N90209
- ORB-01704-353-N90-209
- BS209NBR90
- BS209-NBR90
