OR-22184-353-VBR90-269 - Datasheet

MBA

Category Information

O-Rings - Fluoroelastomer Packs

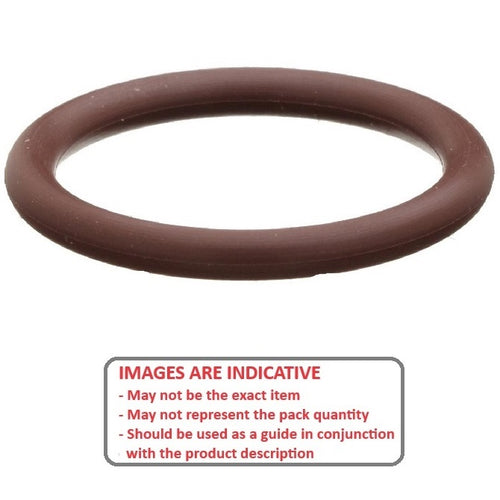

Fluoroelastomer Packs O-Rings. Viton(R) A for high temperature and chemical resistance.

  • Viton® O-Ring suiteable for high temperature and chemical resistance.
  • Mulitple packs may be supplied together in a singular package.
  • Temperature Range: -20 Deg C to +200 Deg C.
  • Suitable for synthetic and hydraulic fluids, strong acids, steam, many chemicals and many alkalis.
  • Viton(R) is a registered trademark of Dupont Corporation.
  • Viton is usually supplied brown, but black may be substituted when brown is unavailable.
  • If you need a larger quantity, please check the BULK category for these o-rings.

Product Data

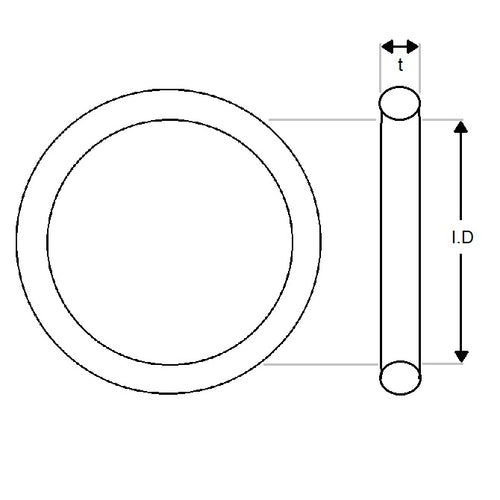

  • Inside Diameter (ID) : 221.84 mm
  • Section (t) 3.53 mm
  • Colour Brown Fluoroelastomer
  • Hardness 90 Durometer
  • Material Fluoroelastomer
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • BS269-V90
  • BS269V90
  • ORB22184353VBR90269
  • ORB-22184-353-VBR90-269
