OR-01207-533-VBR90-310 - Datasheet

MBA

Category Information

O-Rings - Fluoroelastomer Packs

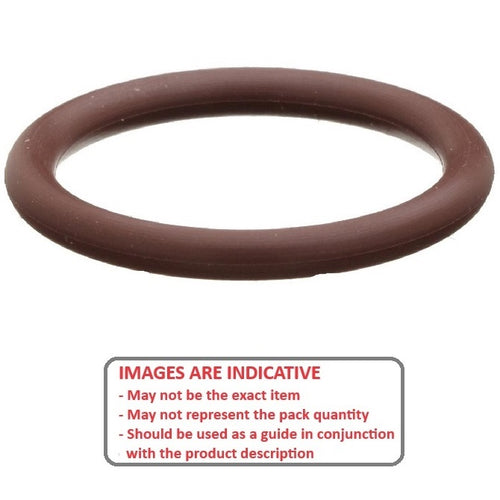

Fluoroelastomer Packs O-Rings. Viton(R) A for high temperature and chemical resistance.

  • Viton® O-Ring suiteable for high temperature and chemical resistance.
  • Mulitple packs may be supplied together in a singular package.
  • Temperature Range: -20 Deg C to +200 Deg C.
  • Suitable for synthetic and hydraulic fluids, strong acids, steam, many chemicals and many alkalis.
  • Viton(R) is a registered trademark of Dupont Corporation.
  • Viton is usually supplied brown, but black may be substituted when brown is unavailable.
  • If you need a larger quantity, please check the BULK category for these o-rings.

Product Data

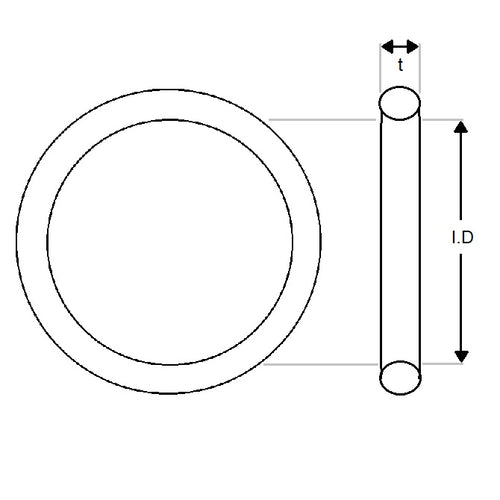

  • Inside Diameter (ID) : 12.07 mm
    (Equiv. 0.475 in.)
  • Section (t) 5.33 mm
    (Equiv. 0.21 in.)
  • Colour Brown Fluoroelastomer
  • Hardness 90 Durometer
  • Material Fluoroelastomer
Country of Origin: TW

Product Compliance and Data

Additional Resources

Cross References

  • ORB01207533VBR90310
  • ORB-01207-533-VBR90-310
  • BS310-V90
  • BS310V90
