OR-00074-102-VBR75-001 - Datasheet
MBA
Category Information
O-Rings - Fluoroelastomer PacksFluoroelastomer Packs O-Rings. Viton(R) A for high temperature and chemical resistance.
- Viton® O-Ring suiteable for high temperature and chemical resistance.
- Mulitple packs may be supplied together in a singular package.
- Temperature Range: -20 Deg C to +200 Deg C.
- Suitable for synthetic and hydraulic fluids, strong acids, steam, many chemicals and many alkalis.
- Viton(R) is a registered trademark of Dupont Corporation.
- Viton is usually supplied brown, but black may be substituted when brown is unavailable.
- If you need a larger quantity, please check the BULK category for these o-rings.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

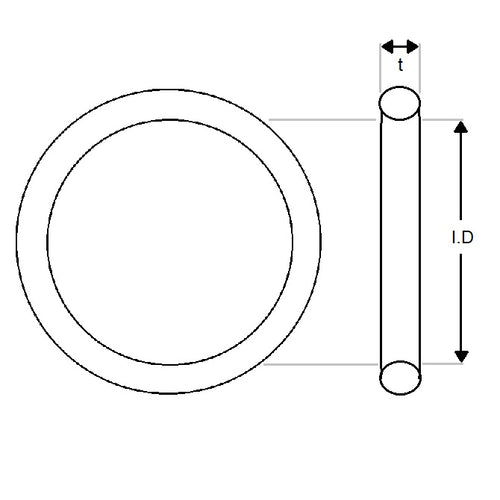

- Inside Diameter (ID)
:
0.74
mm
(Equiv. 0.029 in.) - Section (t)
1.02
mm
(Equiv. 0.04 in.) - Colour Brown Fluoroelastomer
- Hardness 75 Durometer
- Material Fluoroelastomer
Product Compliance and Data
Additional Resources
Cross References
- 9464K101
- Small Parts ORV-001
- ORB00074102VBR75001
- ORB-00074-102-VBR75-001
- ORV001
- BS001V75
- BS001V75BROWN
- BS001-V75-BROWN
