OR-01793-246-VBR90-909 - Datasheet
MBA
Category Information
O-Rings - FluoroelastomerFluoroelastomer O-Rings. Viton(R) A for high temperature and chemical resistance.
- Temperature Range: -20 Deg C to +200 Deg C.
- Suitable for synthetic and hydraulic fluids, strong acids, steam, many chemicals and many alkalis.
- Viton(R) is a registered trademark of Dupont Corporation.
- Viton is usually supplied brown, but black may be substituted when brown is unavailable.
Product Data

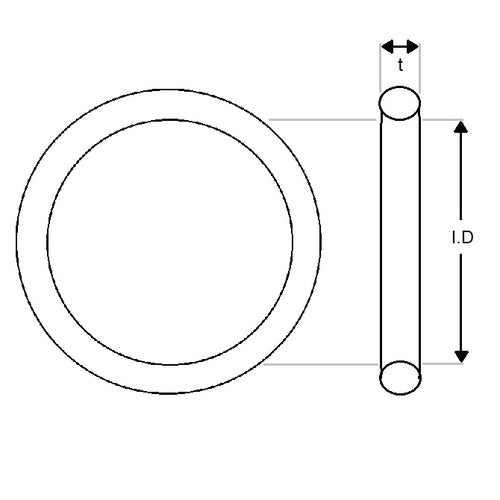

- Inside Diameter (ID)
:
17.93
mm
(Equiv. 0.706 in.) - Section (t)
2.46
mm

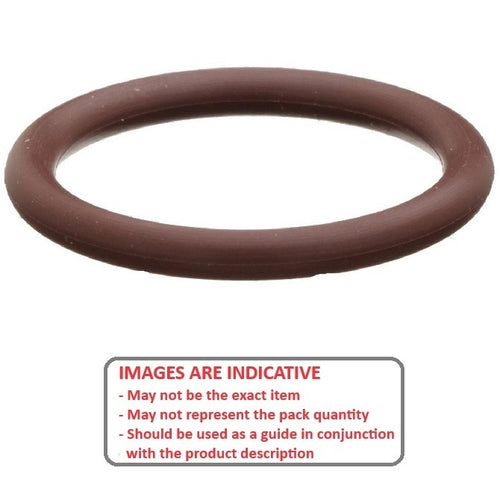

(Equiv. 0.097 in.) - Colour Brown Fluoroelastomer
- Hardness Duro 90
- Material Fluoroelastomer - Brown
Product Compliance and Data
Additional Resources
Cross References
- BS909-V90
- BS909V90
