NT160M-QC-CB - Datasheet
MBA
Category Information

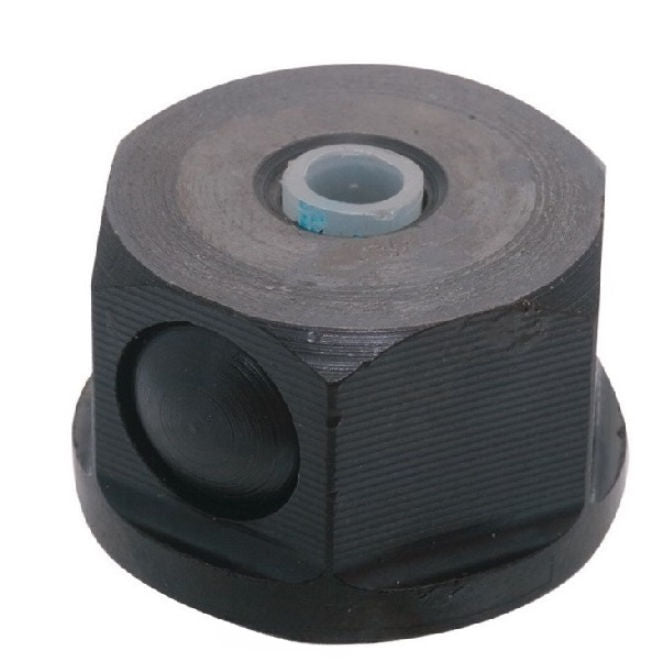

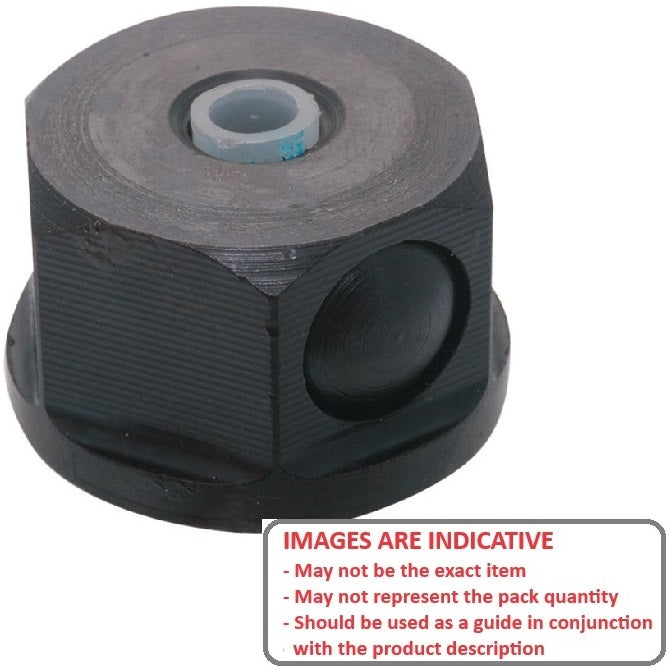

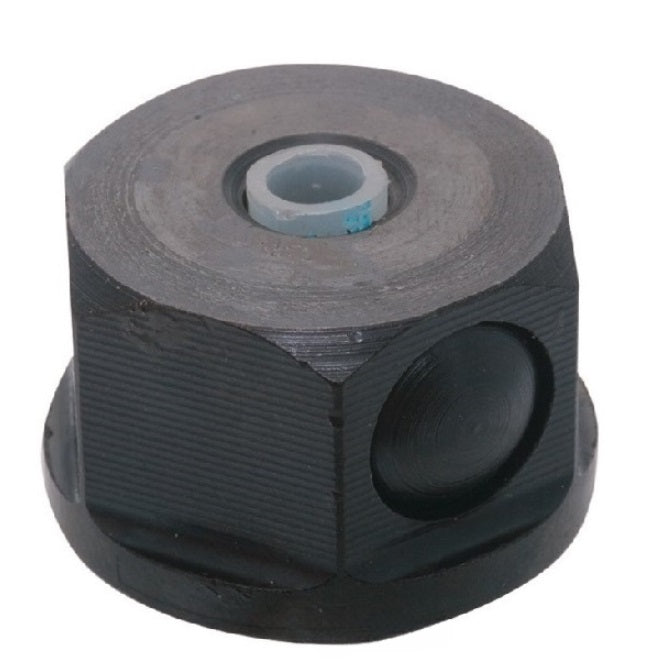

Nuts - Quick ReleaseQuick Release Nuts. UNC
- Carbon steel, black oxide finish.
- Button Thread nuts allow quick fixturing on long thread lengths.
- Simply press the button and the threads are disengaged to allow easy movement up or down the screw.
- Release the button and the threads engage for normal turning.
Product Data
Deleted Item. Available while stocks last.
Please contact us first if you wish to use this item in a new design so we can check whether production can be resumed.

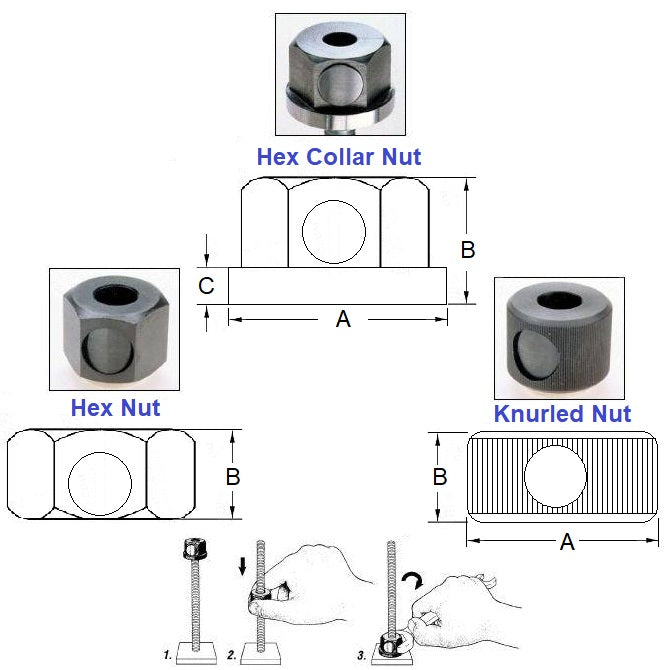

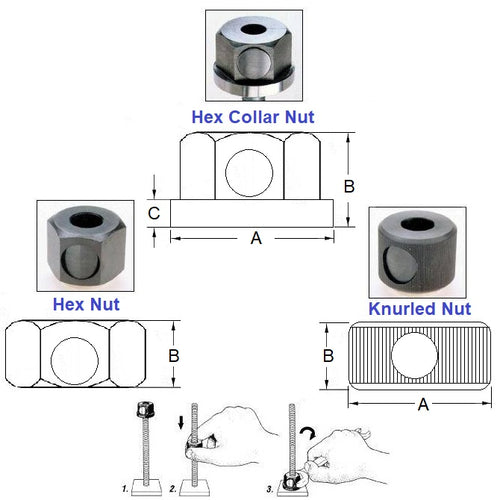

- Thread Size : M16 (16x2mm)
- Across Flats (A/F)
35
mm
(Equiv. 1.378 in.) - Height (B) 28.50 mm
- Flange Thickness (C) 6.50 mm
- Load Rating 4095 kg
- Torque 74.95 Nm
- Type Hex with Collar
Product Compliance and Data
Additional Resources
Cross References
- FCN716
- FCN-716
